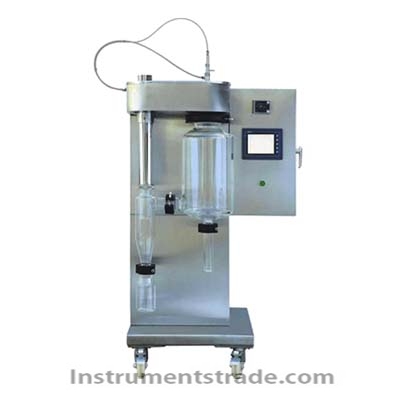

YM-6000Y small spray dryer for Plant extracts

Position: Home > > Lab general equipment > Heating / drying equipment > Spray drier > YM-6000Y small spray dryer for Plant extracts

YM-6000Y small spray dryer for Plant extracts

Product ID：SYJRGZpwgz007

Price: Please inquire PDF Format

Supply Ability:50SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberYM-6000Y

Brand NameSHYUMING

Payment TermsTT，PAYPAL，Alibaba.com Pay

YM-6000Y Mini Spray Dryer
Product Introduction
The YM-6000Y Mini Spray Dryer is a compact laboratory-scale spray drying system designed for transforming liquid solutions, suspensions, and emulsions into uniform dry powders within seconds. Equipped with an imported atomizing nozzle, advanced PID temperature control, integrated oil-free air compressor, and transparent borosilicate glass drying chamber, it provides highly efficient and visible drying processes.
The system is widely used in pharmaceutical development, food processing, chemical research, material science, biotechnology, and university laboratories requiring rapid sample drying and powder preparation.

Key Features
• Imported high-efficiency atomizing nozzle for stable spray drying performance.
• Large color touchscreen with automatic and manual operation modes, supporting English and Chinese interfaces.
• PID temperature control technology with ±1°C heating accuracy.
• Transparent high-borosilicate glass drying chamber for real-time process observation.
• Two-fluid atomization system with 316 stainless steel nozzle producing uniform particle distribution.
• Automatic nozzle cleaning function with adjustable clearing frequency to prevent blockage and ensure continuous operation.

Working Principle
The YM-6000Y Mini Spray Dryer converts liquid samples into dry powders through atomization and rapid hot-air drying.
• The sample is delivered by a peristaltic pump to the atomizing nozzle.
• Compressed air creates fine droplets through the two-fluid atomization process.
• Heated air enters the drying chamber and rapidly evaporates moisture from the droplets.
• Dry particles are formed within approximately 1–1.5 seconds.
• The cyclone collection system separates and collects the final powder product.
This process produces highly uniform particles while preserving heat-sensitive materials through controlled drying conditions.

Technical Specifications

Parameter	Specification
Model	YM-6000Y
Inlet Air Temperature	30–300°C
Outlet Air Temperature	30–150°C
Water Evaporation Capacity	1500–2000 mL/h
Maximum Feed Rate	2000 mL/h
Minimum Feed Volume	50 mL
Feed System	Adjustable Peristaltic Pump
Average Drying Time	1.0–1.5 s
Heater Power	3 kW
Power Supply	AC 220V, Single Phase, Grounded
Blower Power	0.2 kW
Maximum Air Flow	5.6 m³/min
Maximum Air Pressure	1020 Pa
Air Compressor Power	0.2 kW
Maximum Gas Output	4.2 m³/h
Compressed Air Pressure	2–3 Bar
Nozzle Diameter	1.00 mm
Dimensions (H × L × W)	1200 × 650 × 500 mm
Weight	125 kg

Applications
The YM-6000Y Mini Spray Dryer is suitable for:
• Pharmaceutical powder formulation and drug development
• Food ingredients, flavors, and nutritional powder production
• Chemical and fine chemical powder preparation
• Ceramic and nanomaterial processing
• Biological sample drying
• Polymer and advanced material research
• University and research laboratory spray drying experiments

Comparison with Conventional Drying Methods

Feature	YM-6000Y Mini Spray Dryer	Conventional Oven Drying
Drying Time	1–1.5 Seconds	Several Hours
Powder Uniformity	Excellent	Moderate
Particle Size Control	Precise	Limited
Process Visibility	Full Visual Observation	Not Visible
Continuous Operation	Yes	No
Sample Throughput	High	Low
Research Efficiency	High	Moderate

FAQ
1. What types of samples can be processed with the YM-6000Y?
The system can process solutions, suspensions, emulsions, extracts, biological samples, food ingredients, pharmaceuticals, chemicals, and nanomaterials.
2. What is the drying capacity of the machine?
The evaporation capacity ranges from 1500 mL/h to 2000 mL/h depending on operating conditions and sample properties.
3. How does the anti-clogging system work?
The nozzle features an automatic needle-cleaning mechanism with adjustable frequency, which removes blockages during operation and maintains continuous drying.
4. Is the drying process visible?
Yes. The drying chamber, atomization section, and collection components are manufactured from transparent high-borosilicate glass, allowing real-time observation.
5. Does the system require an external air compressor?
No. The YM-6000Y includes a built-in imported oil-free air compressor, simplifying installation and operation.
6. What particle characteristics can be expected?
The system produces highly uniform powders, with more than 95% of dry particles falling within the same particle size distribution range.
7. Is the spray dryer suitable for heat-sensitive materials?
Yes. Precise PID temperature control and rapid drying help minimize thermal exposure, making it suitable for many heat-sensitive materials.

Why Choose the YM-6000Y Mini Spray Dryer?
The YM-6000Y combines imported nozzle technology, precise PID temperature control, automatic nozzle cleaning, integrated oil-free compressed air supply, and visible spray drying operation in a compact laboratory system. It delivers fast drying, uniform particle production, reliable performance, and user-friendly operation, making it an ideal laboratory spray dryer for research, development, and small-scale production applications.

FAQ
1. What types of samples can be processed with the YM-6000Y?
The system can process solutions, suspensions, emulsions, extracts, biological samples, food ingredients, pharmaceuticals, chemicals, and nanomaterials.
2. What is the drying capacity of the machine?
The evaporation capacity ranges from 1500 mL/h to 2000 mL/h depending on operating conditions and sample properties.
3. How does the anti-clogging system work?
The nozzle features an automatic needle-cleaning mechanism with adjustable frequency, which removes blockages during operation and maintains continuous drying.
4. Is the drying process visible?
Yes. The drying chamber, atomization section, and collection components are manufactured from transparent high-borosilicate glass, allowing real-time observation.
5. Does the system require an external air compressor?
No. The YM-6000Y includes a built-in imported oil-free air compressor, simplifying installation and operation.
6. What particle characteristics can be expected?
The system produces highly uniform powders, with more than 95% of dry particles falling within the same particle size distribution range.
7. Is the spray dryer suitable for heat-sensitive materials?
Yes. Precise PID temperature control and rapid drying help minimize thermal exposure, making it suitable for many heat-sensitive materials.
