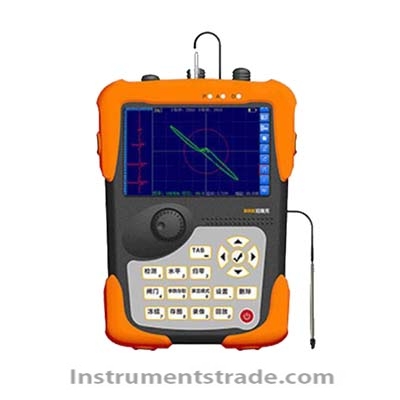

YCL-PET300 Series Eddy Current Flaw Detector
Product Introduction
The YCL-PET300 Series Eddy Current Flaw Detector is a portable non-destructive testing (NDT) instrument designed for detecting surface and near-surface defects in conductive materials. Utilizing advanced eddy current testing technology, the instrument provides fast, reliable, and highly sensitive inspection of cracks, corrosion, inclusions, material discontinuities, and other defects without damaging the workpiece.
The system is widely used in aerospace, rail transit, petrochemical, power generation, automotive manufacturing, metal processing, and quality control laboratories for efficient defect detection and material evaluation.

Features
• High-sensitivity detection of surface and near-surface defects.
• Portable design for field and laboratory inspections.
• Real-time signal display with intuitive analysis interface.
• Supports multiple probes and testing frequencies.
• Fast inspection speed with minimal surface preparation.
• Data storage, review, and report generation functions.

Working Principle
The YCL-PET300 Series Eddy Current Flaw Detector operates based on electromagnetic induction. An alternating current passes through the probe coil, generating an alternating magnetic field. When the probe approaches a conductive material, eddy currents are induced within the test piece.
Any crack, corrosion, inclusion, thickness variation, or material discontinuity disrupts the normal flow of eddy currents, causing measurable changes in the probe impedance. These signal variations are processed and displayed by the instrument, enabling accurate defect identification and evaluation. Eddy current testing is particularly effective for detecting surface and near-surface flaws in conductive materials while requiring no direct contact with the specimen.

Technical Specifications

Parameter	Specification
Product Model	YCL-PET300 Series
Testing Method	Eddy Current Testing (ECT)
Detection Type	Surface & Near-Surface Defects
Applicable Materials	Conductive Metals and Alloys
Frequency Range	Multi-frequency Configurable
Display	High-Resolution Color Display
Probe Compatibility	Multiple Eddy Current Probes
Data Storage	Internal Memory & Export Function
Alarm Function	Visual & Audible Alarm
Power Supply	Rechargeable Battery / AC Power
Communication Interface	USB / Optional Data Transfer
Operating Mode	Portable Handheld Inspection

Specifications may vary depending on model configuration.

Applications
• Surface crack detection in metal components
• Aircraft and aerospace component inspection
• Heat exchanger and condenser tube testing
• Weld quality inspection
• Railway wheel and axle examination
• Automotive parts quality control
• Corrosion and material degradation assessment
• Metal sorting and conductivity evaluation
• Manufacturing process inspection
• Power plant maintenance and NDT services

Comparison with Conventional Inspection Methods

Feature	YCL-PET300 Eddy Current Flaw Detector	Visual Inspection	Magnetic Particle Testing
Surface Crack Detection	Excellent	Limited	Excellent
Near-Surface Defect Detection	Excellent	No	Limited
Non-Contact Inspection	Yes	Yes	No
Inspection Speed	Fast	Moderate	Moderate
Automation Capability	High	Low	Low
Conductive Material Testing	Excellent	Limited	Ferromagnetic Only
Surface Preparation Required	Minimal	Minimal	Moderate
Digital Data Recording	Yes	No	Limited

FAQ
1. What defects can the YCL-PET300 detect?
The instrument can detect cracks, corrosion, pits, inclusions, material discontinuities, thickness variations, and other surface or near-surface defects in conductive materials.
2. Which materials are suitable for eddy current testing?
It is suitable for conductive materials such as aluminum, copper, stainless steel, titanium, nickel alloys, and other metallic components.
3. Is couplant required during inspection?
No. Eddy current testing is a non-contact inspection method and does not require couplant or liquid media.
4. Can the instrument inspect coated surfaces?
Yes. Eddy current testing can often detect defects through non-conductive coatings such as paint, anodized layers, or protective coatings, depending on thickness and inspection conditions.
5. What industries commonly use the YCL-PET300?
Industries include aerospace, railway transportation, automotive manufacturing, petrochemical plants, power generation facilities, metal fabrication, and NDT service providers.
6. What are the advantages of eddy current testing compared with other NDT methods?
Eddy current testing offers rapid inspection, high sensitivity to surface defects, minimal preparation requirements, digital data acquisition, and non-contact operation.

Conclusion
The YCL-PET300 Series Eddy Current Flaw Detector provides a reliable and efficient solution for non-destructive testing of conductive materials. Combining high sensitivity, portability, rapid inspection capability, and advanced signal analysis, it is an ideal choice for industrial quality assurance, preventive maintenance, and safety-critical inspection applications.
