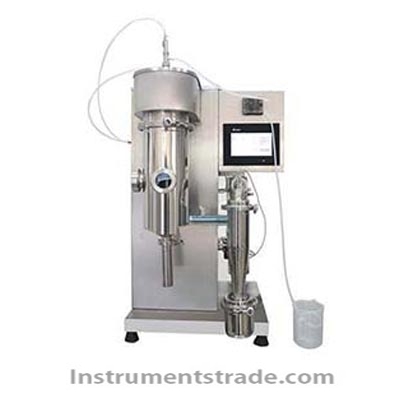

YC-500 Laboratory Benchtop Spray Dryer

Position: Home > > Lab general equipment > Heating / drying equipment > Spray drier > YC-500 Laboratory Benchtop Spray Dryer

YC-500 Laboratory Benchtop Spray Dryer

Product ID：SYJRGZpwgz019

Price: Please inquire PDF Format

Supply Ability:50SETS/MONTH

Port:SHENZHEN

Product Introduction
Other information

Model NumberYC-500

Brand NameSHYACHENG

Payment TermsTT，PAYPAL，Alibaba.com Pay

YC-500 Laboratory Benchtop Spray Dryer

Product Introduction
The YC-500 Laboratory Benchtop Spray Dryer is a compact laboratory spray drying system designed to be placed directly on a laboratory bench or installed on the YC-501 nitrogen circulation system. Its compact structure, dual automatic/manual control, color touchscreen interface, and flexible spray nozzle configuration make it suitable for laboratory-scale spray drying research.
The YC-500 basic model is designed for aqueous solutions. When equipped with the YC-501 nitrogen circulation system, it can be upgraded for organic solvent spray drying without replacing the main spray dryer. This modular design allows researchers to expand the system according to changing experimental requirements.

Performance Features
•   Compact benchtop design: Can be placed directly on a laboratory bench or on the YC-501 nitrogen circulation system.
• Water and organic solvent capability: The basic configuration supports aqueous solutions; adding the YC-501 enables closed-loop nitrogen circulation for organic solvents.
•   Easy upgrade: The basic model can be upgraded by adding only the YC-501 nitrogen circulation module.
• Concentric spray nozzle: The nozzle maintains centered atomization, reducing spray deposition on the chamber wall and helping improve product recovery.
• Adjustable nozzle position: The spray nozzle can be moved vertically to optimize atomization and drying performance.
•   Good high-viscosity adaptability: The nozzle design is suitable for relatively high-viscosity materials and helps reduce clogging.
•   Integrated exhaust dust collector: Reduces powder loss and environmental emissions while improving recovery, particularly for difficult-to-collect materials.
• Improved heater design: Designed to reduce heater failure and extend operating reliability.
•   Dual control modes: Supports both automatic and manual operation.
• Dynamic touchscreen monitoring: A color LCD touchscreen displays operating parameters dynamically.
• Stainless-steel construction: Spray, drying, and collection components are made of high-quality SUS304 stainless steel.
• Two-fluid atomization: Uses a two-fluid spray atomization structure for laboratory spray drying.
• Multiple nozzle sizes: 0.5, 0.7, 0.75, 1.0, 1.5, and 2.0 mm nozzles are available, with customization supported.

Working Principle
The YC-500 uses two-fluid spray atomization to convert the liquid feed into fine droplets. The feed solution is delivered by a controllable peristaltic pump to the concentric spray nozzle, where compressed air or nitrogen atomizes the liquid into droplets.
The droplets enter the drying chamber and contact the heated air stream. Moisture or solvent rapidly evaporates, producing dry particles that are separated and collected by the integrated collection system. Exhaust gas passes through the dust removal unit to reduce powder loss.
For aqueous solutions, compressed air can be used as the atomizing/drying gas. For organic solvents, the YC-501 nitrogen circulation system can provide a closed nitrogen environment, allowing the YC-500 to operate as an organic-solvent laboratory spray dryer.

Technical Specifications

Parameter	Specification
Model	YC-500
Product Type	Laboratory Benchtop Spray Dryer
Installation	Laboratory bench or YC-501 nitrogen circulation system
Control Mode	Automatic + manual control
Display	Color LCD touchscreen with dynamic parameter display
Maximum Inlet Temperature	250°C
Maximum Outlet Temperature	140°C
Maximum Material Processing Capacity	500 mL/h
Maximum Feed Pump Rate	2000 mL/h
Minimum Feed Volume	20 mL
Spray Nozzle	Concentric two-fluid spray nozzle
Nozzle Sizes	0.5 / 0.7 / 0.75 / 1.0 / 1.5 / 2.0 mm
Customized Nozzle	Available
Feed Pump	Peristaltic pump
Displayed Parameters	Inlet temperature, outlet temperature, pump speed, airflow, needle-cleaning frequency
Spray/Drying/Collection Material	SUS304 stainless steel
Observation	Observation window/sight glass
Exhaust Dust Removal	Standard
Gas for Aqueous Solutions	Compressed air
Gas for Organic Solvents	Nitrogen with YC-501 circulation system
Organic Solvent Drying	Supported with optional YC-501
Total Power	2 kW, including nitrogen circulation and refrigeration systems
Power Supply	220 V

Application Scenarios
The YC-500 is suitable for laboratory-scale spray drying and formulation research involving:
•   Aqueous solution spray drying
•   Organic solvent spray drying with nitrogen circulation
•   Pharmaceutical and formulation research
•   Food and ingredient research
•   Chemical and material development
•   Biological and biochemical sample preparation
•   Nanomaterial and functional material research
•   Powder preparation and particle engineering
•   Heat-sensitive or difficult-to-recover laboratory materials
•   Small-scale process development and optimization

YC-500 vs. Conventional Laboratory Spray Dryer

Feature	YC-500	Conventional Basic Spray Dryer
Installation	Benchtop / YC-501 compatible	Usually dedicated installation
Aqueous Solution Drying	Supported	Supported
Organic Solvent Drying	Supported with YC-501	Depends on configuration
Upgrade Path	Add YC-501 nitrogen circulation system	May require another dedicated unit
Spray Nozzle	Concentric, vertically adjustable	Model dependent
High-Viscosity Feed	Good adaptability	Model dependent
Dust Collection	Standard exhaust dust removal	Configuration dependent
Control	Automatic + manual	Model dependent
Display	Color LCD touchscreen	Model dependent
Inlet Temperature	Up to 250°C	Model dependent
Maximum Processing Capacity	500 mL/h	Model dependent
Nozzle Options	0.5–2.0 mm + customized	Model dependent
Construction	SUS304 stainless steel spray/drying/collection system	Model dependent

FAQ
1. What is the YC-500 laboratory spray dryer used for?
The YC-500 is designed for laboratory-scale spray drying of aqueous solutions and, when equipped with the YC-501 nitrogen circulation system, organic solvent solutions.
2. Can the YC-500 be used for organic solvent spray drying?
Yes. The basic YC-500 is intended for aqueous solutions. For organic solvents, the system should be equipped with the YC-501 nitrogen circulation system.
3. What is the maximum inlet temperature?
The maximum inlet air temperature is 250°C, while the maximum outlet temperature is 140°C.
4. What is the maximum processing capacity?
The maximum material processing capacity is 500 mL/h, while the peristaltic pump can be adjusted to a maximum feed rate of 2000 mL/h.
5. What is the minimum feed volume?
The specified minimum feed volume is 20 mL.
6. What spray nozzle sizes are available?
Standard nozzle sizes include 0.5, 0.7, 0.75, 1.0, 1.5, and 2.0 mm. Customized nozzle sizes can also be provided according to requirements.
7. What is the advantage of the concentric spray nozzle?
The concentric nozzle helps maintain centered atomization, reducing droplets hitting the chamber wall. Its vertical position can also be adjusted to optimize the spray drying process.
8. Does the YC-500 have an exhaust dust removal system?
Yes. An exhaust dust collection system is included as standard to reduce powder loss and help improve recovery.
9. What materials are used for the spray drying system?
The spray, drying, and collection components are manufactured from SUS304 stainless steel and include an observation window.
