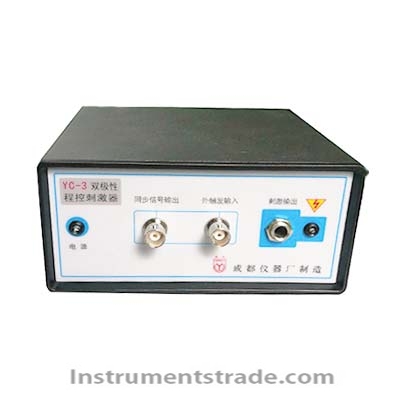

YC-3 Programmable Stimulator Introduction: YC-3 is a fully isolated programmable electrical stimulator that connects to a computer via a USB interface (supporting both USB1.1 and USB2.0). It allows for the simultaneous connection of two devices to a single computer, offering powerful functionality, safety, reliability, ease of operation, and comprehensive applications; Technical Specifications: Operating voltage: ~220V/50Hz Output mode: Voltage, current Pulse polarity: positive pulse, negative pulse, positive-negative pulse, negative-positive pulse Stimulation modes: single stimulation, paired single stimulation, continuous single stimulation, dual stimulation, paired dual stimulation, continuous dual stimulation, timed stimulation, increasing intensity stimulation, increasing frequency stimulation, increasing pulse width stimulation, multi-pair stimulation, programmed paired single stimulation, timed direct current output, advanced increasing/decreasing stimulation, etc; Output range: Constant voltage: ±100V; Output current: 30mA; Step size: 0.002V Constant current ±20mA; step: 1 microampere Output pulse width: 0.01ms - 1000ms, with a step size of 0.01ms; Output frequency: 0.2 Hz - 3000 Hz, with a step size of 0.1 Hz; Triggering mode: Internal triggering (trigger command sent by computer); External trigger (external TTL level (5V), switch trigger or rising pulse trigger); N:1 External trigger count N: Setting range 0-255 (When N=0, each external trigger will trigger stimulus output; when N>0, the first N external triggers are invalid, the N+1th external trigger is valid, the N+2th to 2N+1th external triggers are invalid, the 2(N+1)th external trigger is valid, ..., the M*N+1th external trigger is invalid, and the M*(N+1)th external trigger is valid); Synchronization signal: This output is a pulse signal that is output synchronously with the first stimulus pulse. When the "Synchronization Signal Setting" is set to "Rising Edge", it indicates that the synchronization signal is normally at a low level of 0V and outputs a 5V pulse signal. When the "Synchronization Signal Setting" is set to "Falling Edge", it indicates that the synchronization signal is normally at a high level of 5V and outputs a 0V pulse signal; YC-3B is a programmable stimulator capable of simultaneously controlling two stimulus outputs.
YC-3 Programmable Stimulator Introduction: YC-3 is a fully isolated programmable electrical stimulator that connects to a computer via a USB interface (supporting both USB1.1 and USB2.0). It allows for the simultaneous connection of two devices to a single computer, offering powerful functionality, safety, reliability, ease of operation, and comprehensive applications;
