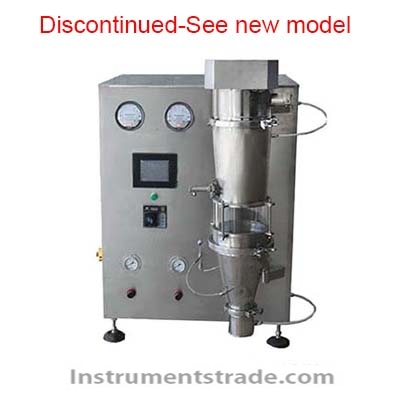

YC-1000 laboratory spray granulator for Drying demand

Product ID:SYJRGZpwgz021

Price: Please inquire PDF Format
Supply Ability:100 SETS/MONTH
Port:SHENZHEN
share:
  • Product Introduction
  • Consulting
  • Model NumberYC-1000
    Brand NameSHYC
    Payment TermsT/T,paypal
    Introduction:
    YC-1000 laboratory spray drying granulation coating machine absorbs the essence of our other series of spray dryers in the function of spray dryer, realizes the combination of low temperature and high temperature spray drying, especially realizes the drying process of traditional Chinese medicine in the laboratory. Not sticky in the wall. The teacher who often needs to dry traditional Chinese medicine and natural product extracts knows that in the laboratory, there is almost no way to dry the Chinese medicine extract directly by spray drying, sticking to the wall, not powdering, and many teachers are troubled by this. YC-1000 laboratory spray drying granulation coating machine can adopt low temperature spray drying method. Under low temperature condition, Chinese medicine will not melt when it encounters high temperature during drying process, and there will be no sticky wall. More importantly, the YC-1000 laboratory spray-drying granulation coating machine has been directly granulated in a spray drying process in many user laboratories, and the particle flow after drying is very good.
    In many fields such as food, pharmaceutical, chemical, antimony, materials, dyes, clothing, energy, etc., YC-1000 laboratory spray-drying granulation coating machine has excellent spray drying performance.
    Features:
    (1) Fluidized bed spray granulation coating process The four processes of spray drying, fluidized bed drying, spray granulation and fluidized bed coating are integrated into one equipment, which can realize one machine multifunction;
    (2) A minimum of 50 grams of sample is required for granulation and coating to complete the experiment;
    (3) Spray drying can be used for drying of low temperature (such as Chinese medicine) and high temperature (such as antimony ore metal) materials;
    (4) Small footprint: only covers an area of ​​0.5 square meters;
    (5) Simple process, compact equipment, low energy consumption and good environmental performance;
    (6) Suitable for heat sensitive materials and particles to dissolve samples;
    (7) PLC operation control, color LCD touch screen display of the whole process experiment state;
    (8) Shutdown protection function: just press the stop button when shutting down, the machine will stop running immediately except the fan to ensure that the equipment will not burn out due to misoperation (forced closing of the fan);
    (9) The whole machine is made of stainless steel, and the atomization structure of the two-fluid spray;
    (10) Real-time regulation of PID thermostat control technology
    Technical Parameters:
    1. One equipment can complete spray drying, fluidized bed drying, fluidized bed granulation, bottom spray coating, truly multi-function, material handling capacity: up to 500 g / time, spray drying capacity 1500ML / H, granules up to 500 microns
    2, spray drying air temperature: 105 ° C ~ 200 ° C, suitable for spray drying of traditional Chinese medicine
    3, fluidizing air inlet air temperature: 40 ° C ~ 150 ° C
    4, peristaltic pump flow: adjustable, up to 1000ml / h
    5. Air pressure of spray atomization: 0.15-4BAR
    6. Expansion chamber volume: 5 liters
    7, fan power 0.75KW
    8, heating power 3KW
    9. Expansion chamber material: borosilicate glass and stainless steel
    10, the maximum intake speed can reach: 150M3/H
    11, compressed air pressure: 0.15Mpa ~ 0.6Mpa, compressed air consumption: ≤ 6M3 / H
    12, color LCD touch screen parameter display: air inlet temperature / material temperature / fan frequency
    13, fluidizing air intake speed: up to 150 cubic meters / hour
     14, voltage: 220V/50Hz, 5KW

  • Introduction:
    YC-1000 laboratory spray drying granulation coating machine absorbs the essence of our other series of spray dryers in the function of spray dryer, realizes the combination of low temperature and high temperature spray drying, especially realizes the drying process of traditional Chinese medicine in the laboratory. Not sticky in the wall. The teacher who often needs to dry traditional Chinese medicine and natural product extracts knows that in the laboratory, there is almost no way to dry the Chinese medicine extract directly by spray drying, sticking to the wall, not powdering, and many teachers are troubled by this. YC-1000 laboratory spray drying granulation coating machine can adopt low temperature spray drying method. Under low temperature condition, Chinese medicine will not melt when it encounters high temperature during drying process, and there will be no sticky wall. More importantly, the YC-1000 laboratory spray-drying granulation coating machine has been directly granulated in a spray drying process in many user laboratories, and the particle flow after drying is very good.
    In many fields such as food, pharmaceutical, chemical, antimony, materials, dyes, clothing, energy, etc., YC-1000 laboratory spray-drying granulation coating machine has excellent spray drying performance.
