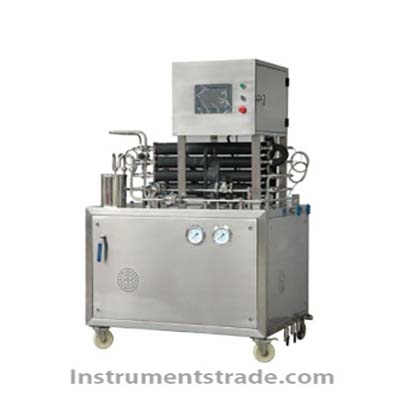

YC-02 Laboratory Mini Ultra-High-Temperature Sterilizer

Product ID：SHGCqtOther038

Price: Please inquire PDF Format

Supply Ability:50 SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberYC-02

Brand NameSHYACHENG

Payment TermsTT，PAYPAL，Alibaba.com Pay

YC-02 Laboratory Mini Ultra-High-Temperature Sterilizer
Product Introduction
The YC-02 Laboratory Mini Ultra-High-Temperature (UHT) Sterilizer is a compact pilot-scale liquid food thermal processing system developed for universities, research institutes, and R&D laboratories in the dairy, beverage, flavor, and related food industries.
The system is designed to simulate industrial production conditions on a laboratory scale and can be operated independently or connected to a computer through a USB interface. With a rated capacity of 20–25 L/h, adjustable flow, a minimum sample volume of 3–5 L, and sterilization temperatures up to 150°C, the YC-02 is suitable for automated thermal treatment research of liquid food products under both aseptic and non-aseptic conditions.
The system supports a wide range of product viscosities and can handle products containing fibers and particles. It integrates heating, cooling, pumping, temperature control, pressure monitoring, CIP, and optional SIP functions into a self-contained system. A homogenizer and aseptic filling chamber can also be configured according to research requirements.

Performance Features
•  Pilot-scale industrial simulation: Designed to reproduce key industrial UHT processing conditions for laboratory product development.
• 20–25 L/h rated capacity: Adjustable flow range supports flexible experimental operation.
•  Small sample requirement: Minimum sample processing volume is only 3–5 L, reducing material consumption during development.
• Up to 150°C processing temperature: PID temperature control provides precise temperature regulation with a control accuracy of ±0.5°C.
•  Flexible holding time: Standard options include 3, 5, 10, and 30 seconds, with 300 seconds available as an option.
•  PLC + touchscreen control: Large color LCD touchscreen provides intuitive monitoring and operation.
•  Fast and normal modes: Fast mode provides one-touch automatic operation, while normal mode allows manual adjustment of process parameters.
• Process animation: Dynamic process graphics clearly display operating status and process flow.
•  Data export: Experimental data can be transferred to a USB drive or printed; temperature curves and related data can be saved for further processing.
•  Automatic and manual control: Operators can switch between automatic and manual operation according to experimental requirements.
•  Integrated CIP: The built-in German SEEPEX screw pump supports online CIP and self-CIP, helping reduce secondary contamination.
•  SIP function: Supports steam-in-place processing.
• No-material protection: An empty-product alarm automatically stops the screw pump when insufficient material is detected.
• Integrated heating and cooling: Built-in hot-water generation and cooling systems simplify laboratory operation.
• Pressure monitoring: Pipeline pressure is displayed accurately on the touchscreen.
•  Stainless-steel construction: The entire system is manufactured from high-quality stainless steel for hygienic laboratory processing.
•  Optional downstream equipment: A homogenizer and aseptic filling chamber can be configured according to R&D requirements.

Working Principle
The YC-02 uses a controlled continuous-flow thermal processing principle. Liquid product is delivered through the system by a screw pump and passes through tubular preheating sections before entering the high-temperature processing stage.
The product is heated by circulating hot water generated by the integrated high-temperature hot-water system. PID temperature control continuously regulates the process temperature, while the holding section maintains the product at the preset sterilization temperature for the selected holding time.
After thermal treatment, the product passes through the cooling section and is cooled by water to a temperature approaching ambient conditions, with the minimum specified cooling temperature reaching 5°C.
Pipeline pressure is monitored by pressure sensors, while back-pressure and flow-direction valves help control process conditions. The system can perform automatic or manual operation and provides online CIP and SIP functions for process-line cleaning and sanitation.

Technical Specifications

Parameter	Specification
Model	YC-02
Product Type	Laboratory Mini UHT Sterilizer
Rated Capacity	20–25 L/h
Adjustable Flow	5–50 L/h
Minimum Sample Volume	3–5 L
Product Pump	German SEEPEX screw pump
Product Flow via Pump	5–25 L/h
CIP Flow	400 L/h
Maximum Sterilization Temperature	150°C
Temperature Control	PID constant-temperature control
Temperature Control Accuracy	±0.5°C
Minimum Cooling Temperature	5°C
Standard Holding Times	3 / 5 / 10 / 30 s
Optional Holding Time	Up to 300 s
Maximum Pressure	8 bar
Control System	PLC
Display	Color LCD touchscreen
Operating Modes	Fast automatic mode + normal/manual mode
Data Export	USB / direct printing
CIP	Supported
SIP	Supported
Heating System	Built-in high-temperature hot-water generator
Preheating Sections	2 tubular sections
Cooling Sections	1 tubular section
Circulation Pumps	2 high-temperature hot-water circulation pumps
Design Power	10 kW
Construction	Stainless steel
Main Unit Dimensions	1650(H) × 1150(L) × 910(W) mm

Application Scenarios
The YC-02 laboratory UHT sterilizer is suitable for:
• Dairy product R&D
• Beverage development
• Liquid food thermal processing research
• Flavor and fragrance formulation research
• Pilot-scale UHT process development
• Aseptic and non-aseptic thermal treatment studies
• Universities and teaching laboratories
• Food research institutes
• New product development
• Industrial process simulation and scale-up research
• Products containing fibers or particles
• Liquid products with different viscosity ranges

YC-02 vs. Conventional Laboratory Thermal Processing Equipment

Feature	YC-02 Laboratory UHT System	Conventional Laboratory Heating System
Processing Mode	Continuous-flow UHT processing	Usually batch processing
Industrial Simulation	Designed to simulate industrial production	More limited
Capacity	20–25 L/h rated	Typically smaller batch volume
Minimum Sample	3–5 L	Model dependent
Maximum Temperature	150°C	Model dependent
Holding Time	3–30 s standard; 300 s optional	Usually manually controlled
Temperature Control	PID + PLC	Model dependent
Process Monitoring	Color touchscreen + animation	Basic monitoring
Automatic Operation	Supported	Often limited
Manual Adjustment	Supported	Supported depending on system
CIP	Online CIP + pump self-CIP	Often requires manual cleaning
SIP	Supported	Usually unavailable
Pressure Monitoring	Integrated	Often unavailable
Data Export	USB / printing	Model dependent
Product Type	Wide viscosity range; fibers and particles supported	Often more limited
Industrial Scale-Up	Process designed for industrial simulation	Less directly representative

FAQ
1. What is the YC-02 laboratory UHT sterilizer used for?
It is designed for laboratory and pilot-scale research into high-temperature thermal processing of liquid food products, including dairy products, beverages, flavors, and other formulations.
2. What is the rated processing capacity?
The rated capacity is 20–25 L/h, with an adjustable flow range of 5–50 L/h.
3. What is the minimum sample volume?
The minimum sample processing volume is approximately 3–5 L, which helps reduce material consumption during R&D trials.
4. What is the maximum sterilization temperature?
The maximum sterilization temperature is 150°C, with PID temperature control and a specified control accuracy of ±0.5°C.
5. What holding times are available?
Standard holding times are 3, 5, 10, and 30 seconds. A 300-second option is also available.
6. Does the YC-02 support CIP and SIP?
Yes. The system supports both online CIP and SIP, while its built-in screw pump also supports self-CIP.
7. Can the process be operated manually?
Yes. The system provides both automatic and manual control. Operators can switch to manual mode when process parameters need to be adjusted during an experiment.
8. Can experimental data be exported?
Yes. Experimental data can be copied to a USB drive or printed. Temperature curves and related process data can also be saved for further analysis and documentation.
9. Can the YC-02 handle products containing particles or fibers?
Yes. The system is designed for a broad range of liquid viscosities and can accommodate products containing fibers and particles.
