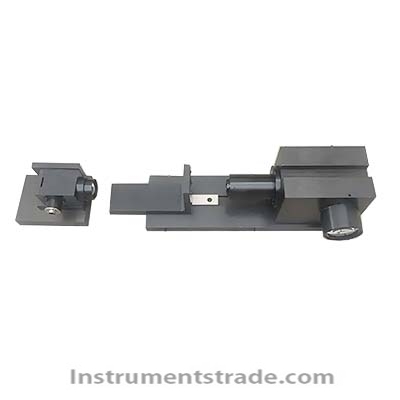

YBDD-2.5/54 portable guide center alignment device Introduction: The portable guide alignment instrument produced by our company is a precision optical projection measuring instrument, which replaces similar imported products from abroad in terms of performance. The function of the portable guide alignment instrument is mainly used to adjust the guide base on the steel rolling production line, ensuring that the guide is aligned with the rolling centerline. The instrument is equipped with two symmetrical key slots for easy positioning, allowing for rapid online measurement and adjustment in two different directions. The portable guide alignment instrument is mainly divided into two types: pre precision rolling with a magnification of 2.5 times and precision rolling with a magnification of 3 times. Technical Specifications: 1. Pre precision rolling portable guide alignment instrument (YBDD-2.5/54) Reading method: Projection reading Projection screen diameter (mm): φ 80 Small reading value (mm): 0.4 Objective magnification (x): 2.5 Roll hole with larger size (mm): φ 30 Height from guide seat base to roller center (mm): 54 Guide keyway width (mm): 12 Distance from the center of the guide roller to the axis of the mirror surface (mm): 90 2. Portable guide alignment instrument for precision rolling (JBDD-3/65) Reading method: Projection reading Projection screen diameter (mm): φ 60 Small reading value (mm): 0.4 Objective magnification (x): 3 Roll hole with larger size (mm): φ 18 Height from guide seat base to roller center (mm): 65 Guide keyway width (mm): 25 Distance from the center of the guide roller to the axis of the mirror surface (mm): 90
Introduction: The portable guide alignment instrument produced by our company is a precision optical projection measuring instrument, which replaces similar imported products from abroad in terms of performance. The function of the portable guide alignment instrument is mainly used to adjust the guide base on the steel rolling production line, ensuring that the guide is aligned with the rolling centerline. The instrument is equipped with two symmetrical key slots for easy positioning, allowing for rapid online measurement and adjustment in two different directions. The portable guide alignment instrument is mainly divided into two types: pre precision rolling with a magnification of 2.5 times and precision rolling with a magnification of 3 times.
