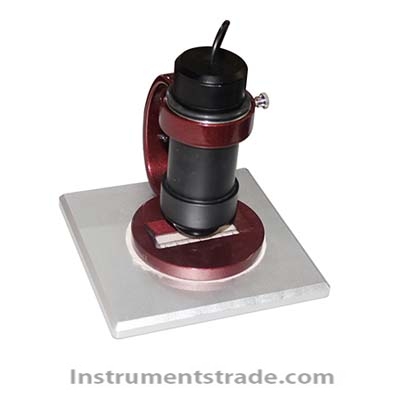

Y511B-II Electronic Fabric Density Mirror Introduction: The Y511B-II Electronic Fabric Density Mirror is an instrument designed for measuring the warp and weft densities of various types of cotton, wool, linen, silk, chemical fiber fabrics, and blended fabrics. It complies with standards such as GB/T4668 and ISO 7211.2. Features: 1. Marker point color: Can be freely selected based on the fabric sample 2. Measurement Method: Supports semi-automatic measurement to enhance efficiency 3. Lens Adjustment: The lens height can be adjusted up and down, and the clarity can be modified Technical Parameters: Measurement accuracy: 0.1mm Magnification: up to 15x Applicable Standards: GB/T 4668, ISO 7211.2 External dimensions: 180x180x220mm, Weight: 5KG Operation method: 1. Preparation Work Select the magnification of the lens according to the desired yarn count, and install it in the eyepiece holder of the instrument. Based on the fabric color, select the corresponding vernier glass scale color. When switching, simply gently insert the vernier scale glass piece. 2. Measurement Operation Place the instrument on the tested fabric, aligning it nearly parallel to the warp and weft yarns, then adjust the lens height to achieve the clearest image in the field of view. Press the top surface of the instrument with your left hand, then rotate the adjustment knob with your right hand to align the engraved lines in the lens with the zero position. Next, reverse the adjustment knob and visually count the number of warp and weft yarns per unit length.
Y511B-II Electronic Fabric Density Mirror Introduction: The Y511B-II Electronic Fabric Density Mirror is an instrument designed for measuring the warp and weft densities of various types of cotton, wool, linen, silk, chemical fiber fabrics, and blended fabrics. It complies with standards such as GB/T4668 and ISO 7211.2.
