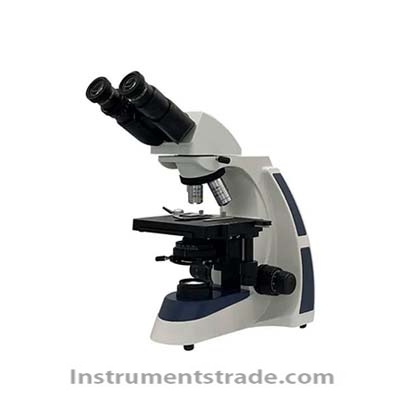

XSP-BM-17 biological microscope

Product ID：GSXshw026

Price: Please inquire PDF Format

Supply Ability:50 SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberXSP-BM-17

Brand NameSHBIAIMU

Payment TermsTT，PAYPAL，Alibaba.com Pay

XSP-BM-17 biological microscope
Introduction:
The BM-17 binocular UIS biological microscope utilizes UIS infinity optical technology, offering strong expandability and the ability to be equipped with auxiliary devices such as vertical illumination units and fluorescence units. It is widely used in research fields such as histology, biology, bacteriology, pathology, and medicinal chemistry, as well as in teaching at colleges and universities, and in clinical analysis and experimentation in the medical field. This instrument employs an electric light source with continuously adjustable brightness, a hinged lens barrel, a 30° tilt, and the ability to rotate freely through 360 degrees.
Technical Specifications:
1. Eyepiece:

Category	magnification	Field of view diameter
Flat field eyepiece	10X	Φ22mm
Flat field eyepiece	16X (optional)	Φ15mm

2. Objective lens:

Category	magnification	numerical aperture	working distance
Infinite achromatic objective lens	4X	0.10	20.00mm
	10X	0.25	13.50mm
	40X	0.65	0.68mm
	100X (oil)	1.25	0.20mm

3. Mechanical tube length: infinite system (∞)
4. Magnification: 40X-1000X
(Total magnification of microscope: Total magnification of microscope = objective lens magnification × tube lens magnification × eyepiece magnification)
5. Stage size: moving platform 140×160mm; moving range: 76×45mm
6. Focusing device: 30 mm coarse and fine focusing coaxial mechanism, with a micro-adjustment scale value of 0.002mm
7. Condenser: N.A. 1.25 adjustable medium Abbe condenser with variable diaphragm
8. Color filter: Blue, green
9. Light source: LED light, adjustable brightness
