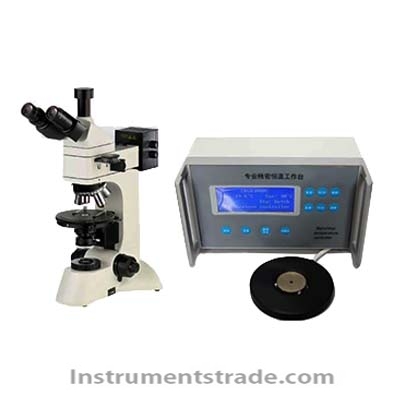

| model | XPG-600M | |
| eyepiece | Wide Field WF10X (Φ22mm) | |
| Reticle eyepiece 10X (field of view Φ22mm) with a scale value of 0.10mm per scale | ||
| objective lens | Stress-free flat field achromatic objective lens (without cover glass) | |
| PL L5X/0.12 Working distance: 26.1 mm | ||
| PL L10X/0.25 Working distance: 20.2 mm | ||
| PL L40X/0.60 (spring) Working distance: 3.98 mm | ||
| PL L60X/0.70 (spring) Working distance: 3.18 mm | ||
| Total magnification | 50-600X | |
| Epifluorescence illumination system | 6V 30W halogen lamp, with adjustable brightness | |
| The polarizer can rotate 360° | ||
| The polarimeter can rotate 360˚, with a scale and a vernier, | ||
| Built-in field of view and aperture diaphragm, with a rotary filter (blue, yellow, frosted glass) on the upper light source | ||
| stage | The rotary circular stage has a diameter of 160mm; it features a 360-degree equally divided scale, a vernier scale value of 6, an adjustable center, a locking device, and a vertical travel range of up to 30mm | |
| transformer | Four holes (with adjustable converter center) | |
| Intermediate connecting cylinder | Push-in Bertrand lens | |
| compensator | λ, λ/4 and quartz wedge compensator | |
| Eyepiece tube | The trinocular lens is tilted at 30˚, allowing for 100% transparent photography | |
| Focusing mechanism | Coaxial focusing with coarse and fine adjustments, equipped with locking and limiting devices, with a fine adjustment scale value of 2μm | |
| Transmitted illumination | polarizer | It can rotate 360°, with four readings: 0, 90, 180, and 270 |
| light collector | Halogen lighting is suitable | |
| light source | 6V 30W halogen lamp, with adjustable brightness | |
| Abbe condenser | N.A. 1.25, adjustable up and down, plug-in color filter (blue, yellow, frosted glass) | |
| imaging system | MC630 | Sony sensor IMX178; 6.3 million pixels; maximum resolution of captured images up to 3072 x 2048 |
| function | "Real-time" image stitching | |
| "Real-time" depth fusion | ||
| Efficient image acquisition - editing - measurement - report output | ||
| Brightfield, fluorescence, and polarization imaging | ||
| chip size | 1/1.8" | |
| color type | Color, black and white | |
| pixel dimensions | 2.4x2.4(μm) | |
| resolution | 3072(H)x2048(V) | |
| camera frame rate | 41fps(3072x2048) 41fps(1536x1024 2x2bin) |
|
| shutter mode | Rolling shutter | |
| exposure time | 0.13ms-15s | |
| Auto Setup | Exposure, tone mapping, white balance | |
| Manual setup | Exposure, gain, noise reduction, gamma, flat-field correction | |
| color temperature | 2000-15000K | |
| PC software | Capture V 2.0 | |
| image format | JPG / PNG / TIFF | |
| operating system | Supporting Windows, Linux/Mac development | |
| Constant temperature heating plate |
temperature range | Room temperature - 320℃ |
| Maximum temperature of the external body of the hot plate | Hot body at 300℃; at room temperature (25℃), it is ≤70℃ | |
| Maximum load capacity of the hot body | 200 grams, heating element size Φ37mm | |
| measurement accuracy | Full range ≤±0.5% | |
| Maximum rate of temperature rise | Room temperature - 100℃ ≤ 40 seconds | |
| The time required for the slowest temperature rise to reach 400℃ | 4 hours | |
| The temperature rise speed range can be set | Programming at any speed | |
| Heating power supply for the hot plate | DC 12V 10A | |
