Sales XO-5KW microwave high-temperature sintering furnace，Manufacturer

Position: Home > > Lab general equipment > Heating / drying equipment > Experimental furnace > XO-5KW microwave high-temperature sintering furnace

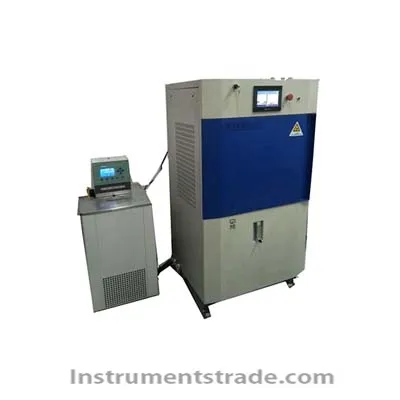

XO-5KW microwave high-temperature sintering furnace

Product ID：SYJRGZsyl028

Price: Please inquire PDF Format

Supply Ability:20SETS/MONTH

Port:SHENZHEN

Product Introduction
Other information

Model NumberXO-5KW

Brand NameNJXO

Payment TermsT/T, paypal

Introduction
XO high-temperature microwave sintering furnace / microwave muffle oven / microwave ashing furnace / is a new generation of high-temperature microwave standardized test workstation, with significant efficiency, energy saving, environmental protection, especially high-temperature microwave sintering furnace under air atmosphere for all kinds of various solid the calcined material, baking, sintering, high temperature synthesis, ash, melting and heat treatment study, the test sample can be used or produced in a constant temperature high temperature test or tests. Main features using a special high-performance industrial-grade microwave source to ensure continuous and stable long-running equipment; microwave sintering reaction sintering process spread evenly than conventional heating methods, can achieve ultra-fast heating (or program temperature control), and significantly shorten the holding time, the experimental efficiency multiplied; microwave output power can be adjusted to achieve precise temperature control curve; imported high-precision infrared thermometer, direct measurement of the sample temperature; equipped with an embedded microprocessor integrated temperature control system to achieve super-stable of temperature, a variety of unique special crucibles and insulation for selection of non-polluting materials; machinable handle a variety of microwave properties of different materials, versatility, flexibility and easy operation.
Feature
1)The use of special high-performance industrial grade microwave source to ensure continuous and stable long-running equipment;
2)can achieve ultra-fast heating, and significantly shorten the holding time, the experimental efficiency multiplied;
3)microwave output power adjustable, timing, temperature control, and precise temperature control curve dynamic monitoring;;
4)imported high-precision temperature infrared thermometer, direct measurement of the sample temperature, temperature stability: ± 1 ℃;
5)having an intake passage and outlet channels for communication inert gas experiments, the gas flow control;
6)a variety of unique special crucibles and insulation for selection of non-polluting materials;
7)machinability testing a variety of microwave processing characteristics of different materials, versatility;
8)Set exhaust passage corrosion can quickly exhaust gas generated during heating;
9)touch screen display and operation, equipped with the WINDOWS operating system, you can connect a PC; can be set and stored in multiple temperature curve, the operating records are automatically stored, compatible printer;
10)Multiple security lock protection devices, door, heating chamber door is not closed or opened without starting microwave abnormal function;
11)safe and reliable microwave shielding design, multi-channel anti-leak protection, to achieve zero leakage microwave, to ensure the health and safety laboratory assistant;
Technical Parameter

Model No.	The Highest Temp.	Digital random	Atmosphere system	Loading space(LWH)	Microwave power	Magnetron cooling way	Floor space(sq.m.)
XO-1500W	1500°C	±1°C	standard:Air;optional:oxygen gas,nitrogen, helium and argon	120120120mm	0~1500W (continued,adjustable)	Air cooling	0.8
XO-3KW	1500°C	±1°C	standard:Air;optional:oxygen gas,nitrogen, helium and argon	120150120mm	0~3000W (continued,adjustable)	Air cooling	0.8
XO-5KW	1500°C	±1°C	standard:Air;optional:oxygen gas,nitrogen, helium and argon	180180180mm	0~5000W (continued,adjustable)	Water cooling	01.2
XO-8KW	1500°C	±1°C	standard:Air;optional:oxygen gas,nitrogen, helium and argon	280280280mm	0~8000W (continued,adjustable)	Water cooling	1.5
XO-15KW	1500°C	±1°C	standard:Air;optional:oxygen gas,nitrogen, helium and argon	500500500mm	0~15000W (continued,adjustable)	Water cooling	3.0
