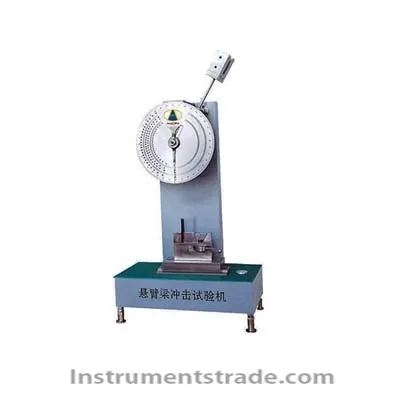

Introduction: XJU series cantilever impact testing machine main technical parameters in full compliance with the IS0 180, GB / T 1843, GB / T 2611, JB / T 8761 and other standards Huai applicable to rigid plastic, reinforced nylon, glass steel, ceramics, cast stone , Electrical insulation materials and other non-metallic materials Determination of impact toughness. Is a simple structure, easy to operate, accurate data, reliable detection equipment. The instrument according to the impact energy is divided into two 5.5J and 22J; display dial pointer type. Features: Dial pointer graduated dial scale value: 1/220 of the impact energy; pointer with active pin and driven needle; Dial fixed dial and rotatable digital dial, the outermost dial is the angle, the middle layer is Simply supported beam scale, the inner cantilever scale. The jaws are wedge-shaped self-clamping jaws, which can be freely installed. It is the newly developed new product. Specifications: Impact speed: 3.5 m / s Pendulum energy: 1J, 2.75J, 5.5J Pendulum torque: Pd1 = 0.53590Nm Pd2.75 = 1.47372Nm Pd5.5 = 2.94744Nm Attack center distance: 335mm Pole Yang: 150 ° Rounded corner radius: R = 0.8 ± 0.2mm Blade to the jaw above the distance: 22 ± 0.2mm Impact blade angle: 75 ° Pendulum empty impact energy loss: 1J: 2%; 2.75J, 5.5J: 1%
Introduction: XJU series cantilever impact testing machine main technical parameters in full compliance with the IS0 180, GB / T 1843, GB / T 2611, JB / T 8761 and other standards Huai applicable to rigid plastic, reinforced nylon, glass steel, ceramics, cast stone , Electrical insulation materials and other non-metallic materials Determination of impact toughness. Is a simple structure, easy to operate, accurate data, reliable detection equipment. The instrument according to the impact energy is divided into two 5.5J and 22J; display dial pointer type.
