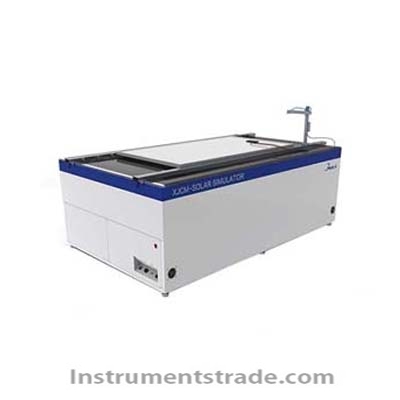

Introduction: The XJCM-9A solar module tester uses a new type of solar simulator. The main technical specifications can reach the AAA standard in IEC60904-9. The system adopts a unique downlighting mode and uses Xenon lamp to simulate sunlight. This equipment can be equipped with automatic rails for the assembly line, which can meet the requirements for rapid testing of high-power solar modules. The basic principle of the test system is to use the electronic load to control the change in current in the solar cell module when the sun simulates illumination onto the solar cell module under test, and to measure the voltage and current on the volt-ampere characteristic curve of the component. The XJCM-9A solar module tester is a solar crystal silicon component. The product is transported face down to the equipment or has been fed with a wide-edge feed. Features: 1. Measured parameters: I-V curve, short circuit current, open circuit voltage, peak power, peak power point voltage, current, constant voltage point current, fill factor, conversion efficiency, series resistance, parallel resistance. 2. 3A standard: Spectral A grade, Irradiation unevenness grade A, Irradiation instability grade A 3. Accuracy: The solar cell module uses a four-wire connection to ensure the accuracy of solar cell current measurement. 4. Temperature correction: Infrared temperature measurement ensures the accuracy of solar cell temperature correction. 5. Test object: It can measure various solar cell components. 6. Test fast: The single test takes less than 1 second and the test interval is less than 10 seconds. Technical Parameters: Model: XJCM-9A Maximum measurable component size: 2000x1100mm Light source: imported pulse xenon lamp Lamp life: 100,000 times Amplitude range: 200-1200W/m2 Spectral matching: 0.75-1.25 (Grade A) Amplitude illuminance instability: <2% (Grade A) Amplitude unevenness: <2% (Grade A) same battery does not repeat test 66 points within the effective test area Repeatability: <0.5%, continuous testing of the same battery for 40 times Measuring gear: Voltage 1V/10V/50V/100V Current 0.25A/1A/2.5A/10A (software selectable) Test resolution: Voltage: 0.1%, current: 0.1% Working mode: Single flash automatic measurement I-V curve Power requirements: 220V ± 10%, 10A, 50HZ Dimensions (length x width x height): 2500 × 1500 × 900mm
Introduction: The XJCM-9A solar module tester uses a new type of solar simulator. The main technical specifications can reach the AAA standard in IEC60904-9. The system adopts a unique downlighting mode and uses Xenon lamp to simulate sunlight. This equipment can be equipped with automatic rails for the assembly line, which can meet the requirements for rapid testing of high-power solar modules. The basic principle of the test system is to use the electronic load to control the change in current in the solar cell module when the sun simulates illumination onto the solar cell module under test, and to measure the voltage and current on the volt-ampere characteristic curve of the component. The XJCM-9A solar module tester is a solar crystal silicon component. The product is transported face down to the equipment or has been fed with a wide-edge feed.
