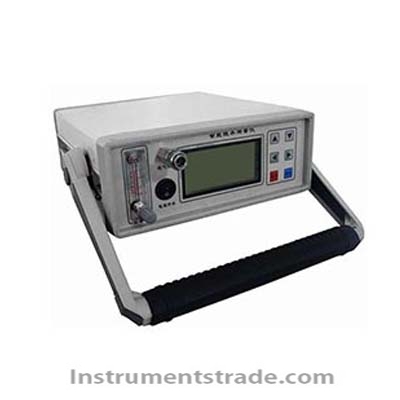

XGWL-Z SF6 Intelligent Moisture Meter

Position: Home > > Analytical instruments > Moisture Analysis Instrument > Dew point meter > XGWL-Z SF6 Intelligent Moisture Meter

XGWL-Z SF6 Intelligent Moisture Meter

Product ID：FSHld015

Price: Please inquire PDF Format

Supply Ability:50SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberXGWL-Z SF6

Brand NameWHXIGAOHUADIAN

Payment TermsTT，PAYPAL，Alibaba.com Pay

XGWL-Z SF6 Intelligent Moisture Meter

Product Introduction
The XGWL-Z SF6 Intelligent Moisture Meter is a portable gas humidity analyzer designed for fast and accurate dew point and moisture measurement. It features a wide measurement range, rapid response, short testing cycles, clear display, and simple operation.
The instrument is especially suitable for SF6 gas moisture testing in electrical power systems. It can also measure the humidity of air, nitrogen, inert gases, and other non-corrosive gases. The XGWL-Z is widely used in electric power, petrochemical, metallurgy, environmental protection, scientific research, and industrial maintenance.

Performance Features
• Fast measurement: No preheating is required after startup. The instrument quickly reaches the dew point measurement condition.
• Low gas consumption: Approximately 2 L of gas is consumed per test at 101.2 kPa.
• Reliable self-locking connector: Equipped with an original German self-locking connector to ensure safe connection and reduce gas leakage.
• Data storage: Stores up to 60 sets of measurement data.
• Clear LCD display: Displays dew point, moisture content in ppm, ambient temperature, ambient humidity, date, time, and battery status.
• Portable design: Compact and lightweight structure for convenient transportation and field testing.
• Built-in rechargeable battery: A fully charged battery supports approximately 8 hours of continuous operation.
• Automatic self-calibration: Built-in self-check and calibration function after startup.
• Chinese user interface: Full Chinese menu and backlit LCD display simplify operation in low-light environments.
• AC/DC power supply: Supports both external power and rechargeable battery operation.

Working Principle
The XGWL-Z SF6 intelligent moisture meter measures gas moisture through dew point detection technology.
During measurement, the gas sample enters the instrument through the sampling connection at a controlled flow rate. The sensor detects the moisture content of the gas and determines the corresponding dew point temperature. The instrument then processes the sensor signal and displays the dew point, moisture content, and relevant environmental parameters on the LCD screen.
The measurement result can be stored in the internal memory for later review and recordkeeping.

Technical Parameters

Parameter	Specification
Product Name	XGWL-Z SF6 Intelligent Moisture Meter
Measurement Range	Dew point: -80°C to +20°C
Measurement Accuracy	±2°C at -80°C to -50°C
	±1°C at -49°C to +20°C
Measurement Time	≤3 minutes per point
Sampling Flow Rate	300 mL/min ±20%
Gas Consumption	Approximately 2 L per test at 101.2 kPa
Display	Backlit LCD, full Chinese interface
Displayed Parameters	Dew point, moisture content, ambient temperature, ambient humidity, date, time, battery status
Data Storage	Up to 60 sets of test data
Power Supply	AC/DC power supply; rechargeable battery
Battery Runtime	Approximately 8 hours of continuous operation
Calibration	Automatic self-calibration after startup
Connector	German original self-locking connector
Dimensions	250 × 100 × 300 mm
Weight	3.5 kg

Application Scenarios
The XGWL-Z SF6 moisture analyzer is suitable for:
• Electrical Power Systems: Moisture testing of SF6 gas in gas-insulated switchgear, circuit breakers, transformers, and other high-voltage equipment.
• SF6 Gas Maintenance: Inspection of gas quality before equipment commissioning, maintenance, and gas replacement.
• Petrochemical Industry: Humidity measurement in non-corrosive process gases.
• Metallurgy: Moisture monitoring in nitrogen and inert gas environments.
• Environmental Protection: Gas humidity analysis in suitable non-corrosive gas samples.
• Scientific Research: Laboratory gas moisture measurement and experimental analysis.
• Industrial Quality Control: Routine inspection of gas dryness and moisture content.

XGWL-Z vs. Conventional Gas Moisture Tester

Feature	XGWL-Z SF6 Intelligent Moisture Meter	Conventional Gas Moisture Tester
Measurement Speed	≤3 minutes per point	Usually requires a longer measurement cycle
Preheating	No preheating required	May require preheating or stabilization
Gas Consumption	Approximately 2 L per test	May consume more sample gas
Connector	Self-locking, leak-resistant connector	Depends on the connection design
Data Storage	Up to 60 sets	May have limited or no internal storage
Display	Backlit LCD with multiple parameters	May display fewer parameters
Power Supply	AC/DC and rechargeable battery	Often relies on external power
Portability	Compact 3.5 kg portable design	May be larger or less convenient for field use
Typical Applications	SF6 testing, field maintenance, laboratory analysis	General gas moisture measurement

Frequently Asked Questions
1. What gases can the XGWL-Z measure?
The instrument is especially designed for SF6 gas moisture measurement. It can also be used for air, nitrogen, inert gases, and other gases without corrosive media.
2. What is the dew point measurement range?
The dew point measurement range is -80°C to +20°C.
3. How long does one measurement take?
The measurement time is no more than 3 minutes per point under suitable operating conditions.
4. Does the instrument require preheating?
No. The XGWL-Z does not require preheating and can quickly reach the dew point measurement condition after startup.
5. How much gas is consumed during one test?
The instrument consumes approximately 2 L of gas per test at 101.2 kPa, helping reduce SF6 gas loss during testing.
6. How many test records can be stored?
The built-in memory can store up to 60 sets of test data.
7. How long can the battery operate?
The rechargeable battery supports approximately 8 hours of continuous operation after a full charge.
8. What information is shown on the display?
The LCD can display dew point, moisture content in ppm, ambient temperature, ambient humidity, date, time, and battery level.
9. Is the instrument suitable for field testing?
Yes. Its portable design, built-in rechargeable battery, low gas consumption, and self-locking connector make it suitable for on-site SF6 gas moisture testing.
