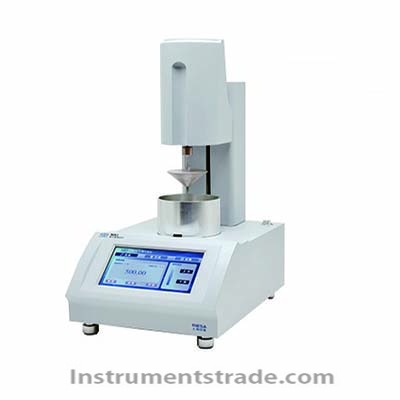

WZR-3 Penetrometer
Product Overview
The WZR-3 Penetrometer is a precision laboratory instrument designed to determine the cone penetration value of lubricating grease, petroleum jelly (petrolatum), pharmaceutical ointments, cosmetics, waxes, and other semi-solid materials. By measuring the penetration depth of a standard cone under controlled conditions, the instrument accurately evaluates material consistency, softness, and hardness for quality control and product development.
Designed in accordance with GB/T 269-2023 and the relevant requirements of the Chinese Pharmacopoeia, the WZR-3 provides highly repeatable and stable measurement results. The instrument features a 7-inch color touchscreen, automatic timing, USB flash drive data export, RS232 communication, optional thermal printing, and storage for 800 test records, making it an ideal solution for modern quality control laboratories and research facilities.

Key Features
●High-precision cone penetration measurement for evaluating the consistency of semi-solid materials.
●Compliant with GB/T 269-2023 and Chinese Pharmacopoeia testing requirements.
●Large 7-inch color touchscreen with intuitive user interface for convenient operation.
●Automatic timing with programmable test duration from 1 to 99 seconds.
●High-resolution displacement sensor with minimum reading of 0.001 mm.
●Stores up to 800 test records for efficient data management.
●USB flash drive export and RS232 communication for easy data transfer and laboratory integration.
●Optional thermal printer for immediate test report printing.
●Excellent repeatability and long-term stability for reliable laboratory testing.

Working Principle
The WZR-3 determines the consistency of semi-solid materials using the cone penetration method.
A standard cone assembly of specified mass is positioned above the sample surface and released under controlled conditions. During the preset test time (typically 5 seconds, or a user-defined interval), the cone penetrates the sample under its own weight.
The penetration depth is measured by a high-precision displacement sensor and displayed digitally. The penetration value is expressed in 0.1 mm penetration units, where:
●Higher penetration values indicate softer materials.
●Lower penetration values indicate harder or stiffer materials.
This standardized testing method provides an objective evaluation of material consistency for quality control, product formulation, and research applications.

Technical Specifications

Parameter	Specification
Model	WZR-3
Measurement Range	≥65 mm (0–650.00 penetration units)
Minimum Reading	0.001 mm (0.01 penetration units)
Repeatability	0.05 mm (0.5 penetration units)
Stability	0.02 mm (0.2 penetration units)
Sensor Accuracy	0.1 mm (1 penetration unit)
Cone Assembly	Full-size: 102.5 ±0.05 g (Cone Rod: 47.5 ±0.05 g) 1/2 Scale: 22.5 ±0.025 g (Cone Rod: 15 ±0.025 g) 1/4 Scale: 9.38 ±0.025 g
Timer Range	1–99 s
Data Storage	800 test records
Communication	USB-A, USB Flash Drive, RS232
Display	7-inch Color Touchscreen
Printer	Optional RD-TH32-SC Thermal Printer
Power Supply	AC 100–240 V, 50/60 Hz, 40 W
Dimensions	250 × 365 × 475 mm
Net Weight	8.6 kg

Applications
Lubricating Grease Testing
Determine grease consistency for product development, production control, and compliance testing.
Petroleum Jelly (Petrolatum) Analysis
Measure the penetration value of petroleum jelly used in cosmetic, pharmaceutical, and industrial applications.
Pharmaceutical Ointment Testing
Evaluate the hardness and consistency of ointments, creams, gels, and semi-solid pharmaceutical formulations.
Cosmetic Product Development
Suitable for testing creams, balms, lotions, and other cosmetic semi-solid products.
Wax and Semi-Solid Material Evaluation
Measure penetration characteristics of waxes, sealants, and other soft industrial materials.
Research and Quality Control Laboratories
Widely used in R&D laboratories, quality assurance departments, universities, and testing institutions.

Why Choose the WZR-3 Penetrometer?
The WZR-3 combines high measurement accuracy, excellent repeatability, and modern digital operation in one compact instrument. Unlike conventional mechanical penetrometers, it features a high-resolution displacement sensor, touchscreen control, digital data storage, USB export, and laboratory communication interfaces, significantly improving testing efficiency and traceability.
With support for multiple cone assemblies, programmable timing, and compliance with national testing standards, the WZR-3 is an ideal solution for laboratories requiring accurate consistency measurement of grease, pharmaceutical products, cosmetics, and other semi-solid materials.

WZR-3 vs Conventional Mechanical Penetrometers

Feature	WZR-3 Penetrometer	Conventional Mechanical Penetrometer
Measurement Accuracy	Digital high precision	Manual reading
Minimum Resolution	0.001 mm	Lower
Display	7-inch Color Touchscreen	Mechanical Scale
Timing	Automatic (1–99 s)	Manual
Data Storage	800 Records	Not Available
USB Data Export	Yes	No
RS232 Communication	Yes	No
Printer Support	Optional	No
Laboratory Data Management	Excellent	Limited

Frequently Asked Questions (FAQ)
1. What is a penetrometer used for?
A penetrometer measures the penetration depth of a standard cone into a semi-solid material to determine its consistency, softness, or hardness.
2. Which materials can the WZR-3 test?
The WZR-3 is suitable for lubricating grease, petroleum jelly, pharmaceutical ointments, cosmetic creams, waxes, gels, and other semi-solid materials.
3. What does a higher penetration value indicate?
A higher penetration value means the sample is softer, while a lower value indicates a firmer or harder material.
4. Does the instrument comply with industry standards?
Yes. The WZR-3 is designed according to GB/T 269-2023 and the relevant testing requirements of the Chinese Pharmacopoeia.
5. Can test results be exported?
Yes. Test data can be exported through a USB flash drive, transferred via RS232, and printed using the optional thermal printer.
6. Is the WZR-3 suitable for pharmaceutical laboratories?
Yes. It is widely used for consistency testing of pharmaceutical ointments and other semi-solid dosage forms in pharmaceutical quality control laboratories.
