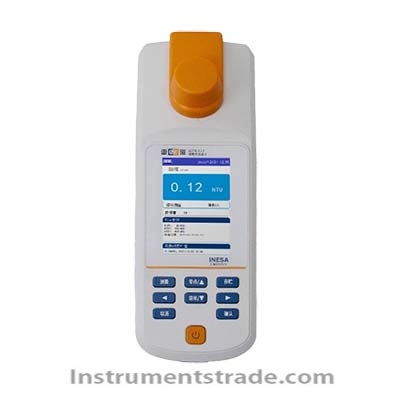

WZB-172 Portable Turbidity Meter
Product Introduction
The WZB-172 Portable Turbidity Meter is designed for measuring water turbidity in laboratory and field applications. Equipped with an 850 nm LED light source that meets the ISO 7027 standard, it uses a combined scattered-light and transmitted-light measurement principle to provide turbidity readings across a range of 0–500 NTU.
The instrument features automatic range switching, automatic zero adjustment, and calibration options for the zero point and up to five calibration points. Its built-in memory stores up to 500 sets of test data, while USB communication supports data collection on a computer. With battery and USB power options and an IP65-rated enclosure, the WZB-172 is suitable for portable water quality testing and routine turbidity monitoring.

Performance Features
• ISO 7027-Compliant Light Source: Uses an 850 nm LED for turbidity measurement.
•  Combined Optical Measurement: Uses scattered and transmitted light, with multi-angle scattered-light detection.
• Ratio Calibration: Supports ratio-based calibration and automatic color compensation.
• Automatic Range Switching: Selects the appropriate measurement range automatically.
•   Automatic Zero Adjustment: Simplifies routine instrument preparation.
•  Flexible Calibration: Supports zero-point calibration and up to five calibration points.
• Average Measurement: Provides an averaging function to help improve measurement consistency.
• Built-In Data Storage: Stores up to 500 sets of test data in accordance with the stated GLP requirements.
•   USB Data Communication: Connects to a PC for data acquisition.
•   Flexible Power Supply: Operates on battery power or USB power.
•  Power Management: Includes automatic shutdown to help conserve battery power.
• IP65 Protection: Provides protection against dust and water jets under specified test conditions.
• Calibration Solutions Included: Supplied with turbidity calibration solutions for instrument calibration.

Working Principle
The WZB-172 uses an 850 nm LED light source and a combined scattered-light and transmitted-light measurement method. When light passes through a water sample, suspended particles scatter and attenuate the light. The instrument detects scattered-light signals from multiple directions and evaluates them alongside transmitted-light information to determine turbidity.
Ratio calibration and automatic color compensation help reduce the influence of sample color on the measurement. The resulting turbidity value is displayed in NTU, with automatic range switching supporting measurements across different turbidity levels.

Technical Parameters

Parameter	Specification
Model	WZB-172
Instrument Type	Portable turbidity meter
Light Source	850 nm LED
Standard	ISO 7027
Measurement Principle	Scattered-light and transmitted-light method
Measurement Range	0–20.00 NTU; 20.0–500.0 NTU
Resolution	0.01 NTU; 0.1 NTU
Indication Error	±6%
Repeatability	±0.5%
Zero Drift	±0.5% FS/30 min
Indication Stability	±0.5% FS/30 min
Calibration	Zero-point and up to 5-point calibration
Measurement Functions	Automatic range switching, automatic zero adjustment, average measurement
Data Storage	Up to 500 sets of test data
Data Communication	USB; PC data acquisition supported
Power Supply	Battery or USB power
Power Management	Automatic shutdown
Protection Rating	IP65
Dimensions	220 × 100 × 80 mm
Weight	0.8 kg
Included Accessories	Turbidity calibration solutions

Note: Confirm the exact battery type, battery life, USB cable and software requirements, and the definition of the stated accuracy and repeatability with the supplier before purchase.

Application Scenarios
•   Drinking Water Testing: Routine turbidity checks in water quality laboratories and field inspections.
•   Environmental Monitoring: Turbidity measurement in rivers, lakes, reservoirs, and other water bodies.
•   Wastewater Treatment: Monitoring suspended-particle-related turbidity during treatment processes.
•   Industrial Water Systems: Testing process water and circulating water.
•   Water Treatment Plants: Supporting filtration performance checks and routine water quality control.
•  Laboratory Analysis: Measuring turbidity in prepared samples and quality-control procedures.
•  Field Sampling: Portable testing at sampling sites where compact equipment and data storage are beneficial.

WZB-172 vs. Conventional Benchtop Turbidity Meters

Comparison Item	WZB-172 Portable Turbidity Meter	Conventional Benchtop Turbidity Meter
Design	Compact, portable instrument	Primarily designed for stationary use
Light Source	850 nm LED	Depends on the model
Measurement Range	0–500 NTU across two ranges	Depends on the model
Range Selection	Automatic	Manual or automatic, depending on the model
Calibration	Zero-point and up to 5-point calibration	Depends on the model
Data Storage	Up to 500 records	Depends on the model
PC Connectivity	USB communication supported	Depends on the model
Power Supply	Battery or USB	Often mains-powered
Environmental Protection	IP65	Depends on the model
Best Suited For	Field measurements and routine portable testing	Laboratory workflows where a fixed setup is preferred

Actual performance depends on the model selected, sample characteristics, calibration procedure, and measurement conditions.

Frequently Asked Questions
1. What is the measurement range of the WZB-172?
The instrument measures turbidity from 0 to 500 NTU using two ranges: 0–20.00 NTU and 20.0–500.0 NTU.
2. Does the WZB-172 comply with ISO 7027?
The instrument uses an 850 nm LED light source specified as compliant with ISO 7027. Confirm any additional method or certification requirements for regulated testing with the supplier.
3. What measurement principle does it use?
It combines scattered-light and transmitted-light measurements, detects scattered light from multiple directions, and uses ratio calibration with automatic color compensation.
4. How many calibration points are supported?
The WZB-172 supports zero-point calibration and calibration at up to five points, allowing users to calibrate the instrument according to their testing requirements.
5. Can the instrument store measurement results?
Yes. It can store up to 500 sets of test data and supports USB communication for PC-based data acquisition.
6. Is the WZB-172 suitable for field use?
Yes. Its portable design, 0.8 kg weight, battery or USB power options, automatic shutdown, and IP65 enclosure make it suitable for many field-testing tasks.
7. What does the IP65 rating mean?
IP65 indicates protection against dust ingress and water jets under specified test conditions. It does not mean the instrument is waterproof for immersion, so avoid submerging it.
8. What is the accuracy of the WZB-172?
The stated indication error is ±6%, repeatability is ±0.5%, and zero drift and indication stability are each specified as ±0.5% FS per 30 minutes. Confirm the manufacturer's test conditions and calculation definitions when comparing specifications.
9. Are calibration solutions included?
Yes. The supplied specifications state that turbidity calibration solutions are provided. Confirm the included solution values, quantities, and any additional accessories with the supplier.
