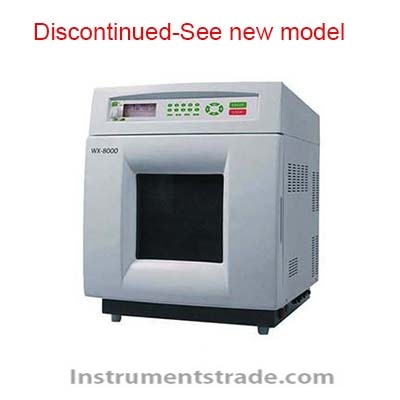

Brief introduction WX-8000 expert type microwave digestion instrument which is different from the domestic microwave oven industry full steel structure special for microwave oven. Is sprayed up to 5 layers of modified Teflon (PFA), with super strong acid corrosion resistance. The standard configuration of high precision and high temperature melt pressure sensor, the platinum resistance temperature sensor and 15 new large frame type high pressure digestion tank. Features 1.temperature, pressure control; 2.high precision and high temperature melt pressure sensor, the pressure range of 0-10MPa (1450psi), measuring accuracy of + 0.01MPa; Resistance temperature sensor 3.high sensitivity of platinum, the temperature range of 0-300 DEG C, temperature measurement accuracy of plus or minus 1 DEG c; 4.digestion tank for large tank frame structure; vertical explosion-proof design, easy disassembly, fast cooling; discharge hole and double seal pressure protection bowl and digestion tank. The volume is 100mL, voltage 10MPa (1450psi), the temperature of 300 DEG c; 5.the large chamber (53L), an 5 layer Teflon coating super acid corrosion; can handle 15 at the same time, ultra high pressure (10MPa) and large capacity (100mL) digestion tank; 6.frequency conversion circuit, output microwave, 2000W output power, 10 speed adjustable, microwave resonant cavity design and microwave power matching, to ensure the uniformity of microwave; 7.the furnace chamber ventilation with acid corrosion, large volume of centrifugal fan, exhaust air 5m fand /min; 8. the special design of self-locking safety door, can withstand accidental explosion. Technical parameter Measurement range: 0-10MPa (1500psi) Measuring accuracy: + 0.01MPa Pressure control stability: + 0.05MPa Temperature range: 0-300 degrees Measurement accuracy: + 0.01MPa Temperature stability: + 0.05MPa The furnace chamber exhaust system: corrosion resistance frequency of centrifugal fan, the maximum exhaust volume 5m3//min
