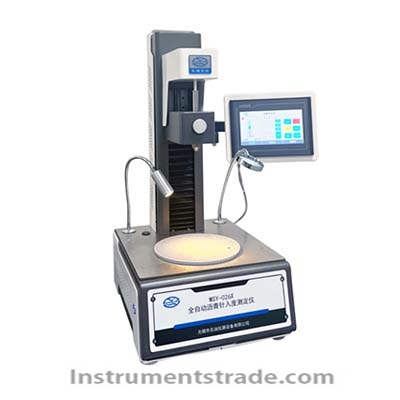

WSY-026X Fully automatic asphalt penetration tester Introduction: This equipment is suitable for determining the penetration of residues from road petroleum asphalt, polymer modified asphalt, cutback asphalt, or emulsified asphalt. Applicable standards: GB/T 4509, JTG 3410-2025/T0604 (new standard) Features: Equipped with a 7-inch color touch screen and PLC control, it operates stably and reliably. 2. It features two modes: "fully automatic" and "semi-automatic". In the fully automatic mode, the instrument can achieve truly fully automatic needle alignment. 3. Customized dual-track ball screw motor lifting module, ensuring smooth and rapid lifting, with three speed options to meet precise needle alignment requirements. 4. The electromagnetic standard needle release mechanism ensures that the needle linkage is not affected by friction during its free fall. 5. Equipped with an LED cold light source and a magnifying glass to assist in needle operation; equipped with a level meter and adjustable bottom corners to ensure the tabletop is level. 6. It possesses functions of data storage, querying, and exporting. Technical Specifications: Measuring range: 0-600 needle penetration (0.1mm) Measurement accuracy: 0.01mm Pinpoint accuracy: ±0.03mm Sample container: Small Φ55*35mm; Large Φ70*45mm (optional); Special Φ70*80mm (optional) Standard needle: Regular needle 50mm±1mm; Long needle 60mm±1mm (optional) Needle and needle linkage assembly mass: 50±0.05g Weight of weight: 50±0.05g Needle insertion time: default 5s; adjustable from 1-999s Timing accuracy: 0.1s Power supply voltage: AC (220±10%)V 50Hz Ambient temperature: 23±5℃ Relative humidity: ≤80%RH Outline dimensions: 370×290×620 (mm)
WSY-026X Fully automatic asphalt penetration tester Introduction: This equipment is suitable for determining the penetration of residues from road petroleum asphalt, polymer modified asphalt, cutback asphalt, or emulsified asphalt. Applicable standards: GB/T 4509, JTG 3410-2025/T0604 (new standard)
