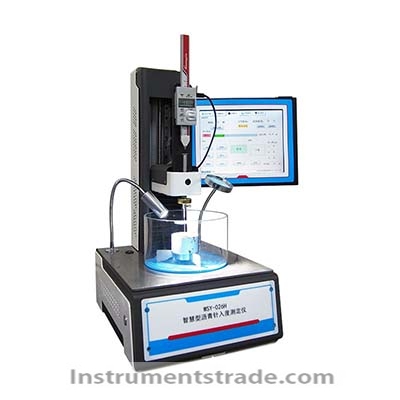

WSY-026H Intelligent Asphalt Penetration Tester Introduction: This equipment is suitable for determining the penetration of residues from road asphalt, polymer modified asphalt, cutback asphalt, or emulsified asphalt Applicable standards: GB/T 4509, JTG 3410-2025/T0604 (new standard) Features: 1. It adopts a 10-inch industrial computer all-in-one machine for control, with touch operation, used for controlling and recording measurement data 2. Measure the needle penetration value with a high-precision LCD meter and synchronously output the data. 3. The stepper motor, coupled with a dual-track ball screw module, ensures smooth and rapid lifting, with four gears available to meet precise needle alignment requirements. 4. Electromagnetic standard needle release mechanism ensures that the needle linkage is not affected by friction during its free fall. 5. During operation, simply press the "Insert Needle" and "Calculate Value" buttons to complete the test procedure, and the average value will be automatically displayed three times. 6. Be able to draw a semi-logarithmic curve of penetration-temperature and a penetration index based on experimental data 7. Data can be exported via USB or RS232 interfaces to generate experimental reports and print them; it can also be uploaded to a data platform for further processing. Technical Specifications: Measuring range: 0-600 needle penetration (0.1mm) Measurement accuracy: 0.01mm Needle insertion time: default 5s; adjustable from 0-99s. Timing accuracy: 0.1s Standard needle: Regular needle 50mm ± 1mm; Long needle 60mm ± 1mm (optional) Needle and needle linkage assembly mass: 50±0.05g Weight mass: 50±0.05g Sample container: Standard container 55*35mm; Large container 70*45mm (optional); Special container 70*80mm (optional) Rated total power: 0.8 kW Relative humidity ≤ 80%RH Power supply voltage: AC (220±10%)V 50Hz Ambient temperature: 23±5℃ Overall dimensions: 310*380*620mm
