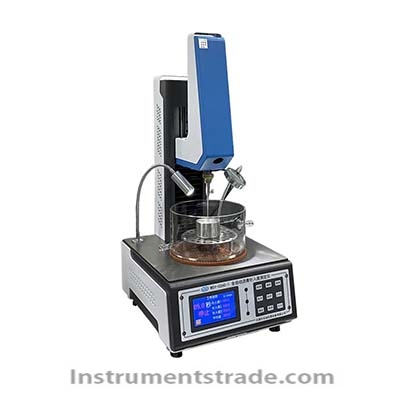

WSY-026C-1 Fully automatic asphalt penetration tester Introduction: This equipment is suitable for determining the penetration of residues from road petroleum asphalt, polymer modified asphalt, cutback asphalt, or emulsified asphalt. It complies with standards GB/T 4509 and JTG 3410-2025/T0604 (new standard) Features: 1. Equipped with a 4.3-inch touch screen display, it provides real-time display of various test parameters, and automatically calculates the average value of the needle penetration results. 2. Some function buttons adopt light-touch buttons with clearer tactile feedback, facilitating precise control operations for users. 3. Customized dual-track ball screw motor lifting module, ensuring smooth and rapid lifting, with three speed options to meet precise needle alignment requirements. 4. Electromagnetic standard needle release mechanism ensures that the needle linkage is not affected by friction during its free fall. 5. Customized high-precision LVDT displacement sensors ensure test accuracy and are conveniently removable and weighable. 6. Equipped with an LED cold light source and a magnifying glass to assist in needle operation; equipped with a level meter and adjustable base angles to ensure the tabletop is level. 7. It features data storage, query, and export (via RS232 interface), and is equipped with a micro printer for one-click printing of test results. Technical Specifications: Measuring range: 0-500 needle penetration (0.1mm) Measurement accuracy: 0.01mm Sample container: Small Φ55*35mm; Large Φ70*45mm (optional); Special Φ70*80mm (optional) Standard needle: Regular needle 50mm±1mm; Long needle 60mm±1mm (optional) Combined mass of needle and needle linkage: 50±0.05g Weight of the weight: 50±0.05g Needle insertion time: default 5s; adjustable from 0-99s Timing accuracy: 0.1s Save data: 50 sets (auto overwrite storage) Power supply voltage: AC (220±10%) V 50Hz Rated total power: 0.2 kW Ambient temperature: 23±5℃ Relative humidity: ≤80%RH Overall dimensions: 310*380*620mm
WSY-026C-1 Fully automatic asphalt penetration tester Introduction: This equipment is suitable for determining the penetration of residues from road petroleum asphalt, polymer modified asphalt, cutback asphalt, or emulsified asphalt. It complies with standards GB/T 4509 and JTG 3410-2025/T0604 (new standard)
