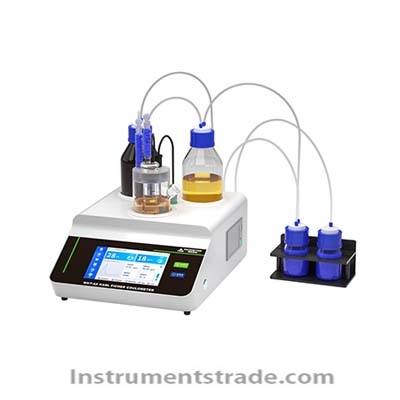

WKT-A8 Fully Automatic Trace Moisture Analyzer (Automatic Liquid Change)

Product ID：FSHqt045

Price: Please inquire PDF Format

Supply Ability:50 SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberWKT-A8

Brand NameTZKETUO

Payment TermsTT，PAYPAL，Alibaba.com Pay

WKT-A8 Fully Automatic Trace Moisture Analyzer (Automatic Liquid Change)
Introduction:
The WKT-A8 fully automatic Karl Fischer titration instrument uses the principle of Karl Fischer coulometric method (coulometric method) to quickly determine the trace moisture in samples. The moisture content can be measured as low as 1ppm (0.0001%), and the trace moisture of solids, liquids, and powders can be determined within 1 minute. The instrument has a built-in printing function and can store 600 sets of data, which can be queried and printed in real time! The biggest feature of the WKT-A8 fully automatic Karl Fischer micro moisture analyzer is that it can automatically add reagents and discharge waste liquids, avoiding direct contact between operators and reaction reagents, and avoiding the impact of volatile components of reagents on the human body. The instrument complies with multiple national and international moisture measurement standards and has four built-in moisture calculation formulas, which can meet the needs of moisture measurement in various industries. It is widely used in industries such as chemical, petroleum, pharmaceutical, power, food, scientific research, and testing.
Application areas:

liquid	Chemical industry: products suitable fo r Karl Fischer meth od determi nation, su ch as alcohols, ethers, acids, benzenes, phenols, organic solvents, etc. Petroleum and power industry: insulating oil, transformer oil and other oil products. Pharmaceutical industry: pharmaceutical raw materials, etc. Pesticide industry: emulsifiers, etc. Other industries: lithium battery electrolytes, etc.
solid	Solid substances with good solubility, such as various inorganic salts and citric acid
gas	Nitrogen SF6、 Natural gas, liquefied gas, fluorocarbons, butadiene and other gases
The following industries require supporting card type heating furnaces for use
Insoluble solid	Lithium battery industry, plastic industry, medical industry, ceramic powder, metal powder, etc
Other insoluble solids	Insoluble solids, easily contaminated and cross contaminated samples (lubricating oils, aldehydes and ketones), samples that easily react with Karl Fischer reagent, and samples with slow water release

characteristic:
1. One click automatic addition of Karl Fischer reagent, one click automatic discharge of electrolytic cell waste liquid, and operators do not need to come into contact with the reagent
2. Environmental humidity detection, automatic deduction of environmental interference values, high sensitivity
3.4 moisture content calculation formulas and 2 measurement methods meet the requirements for determining the moisture content of liquid, solid, and gas samples
4. Multiple data display methods: ug/ppm/percentage content/mg/L/sample name/experimental date, etc. Experimental record standards.
5. It can store up to 600 sets of data for you to retrieve and print at any time.
6. Our eternal pursuit is to import materials and components, and to ensure the stability, accuracy, and long service life of our instruments.
7. Optional USB or RS232 interface, can be connected to a computer PLC balance for automated management
8. The color touch screen operating system is like a mobile app that is easy and convenient to use, with built-in Chinese navigation and electronic manual.
9. The appearance patent design, electrostatic spraying process is environmentally friendly, easy to clean, and corrosion-resistant.
10. Built in Chinese and English languages, customizable for international friends to use.
11. Compliant with multiple national standards and applicable to various industries.
Technical parameters:

PRODUCT MODEL	WKT-A8
Measurement principle	Karl Fischer Coulomb method (electricity method)
measurement speed	40 μ g H2O/s (maximum)
measuring range	0.01 μ g H2O to 260mg H2O
Measurement accuracy	When the water content is between 100 μ g of water and 1000 μ g of water, the error is ≤± 2ug. When the water content is above 1000 μ g of water, the error is ≤± 0.2% (excluding injection error), and the standard deviation is ≤ 0.3%
Measurement resolution	0.1μg H2O
Water content (concentration range)	0.0001% -100% or 1ppm-106ppm
electrolytic current	0-450mA adjustable
Moisture concentration resolution	0.001
Concentration unit	%The ppm、mg/kg
Mixing speed	Software control 0-40 adjustment
Drift value blank value deduction	Automatic deduction
Special Features	Automatic drift compensation, automatic deduction of environmental and background moisture, and fault self check prompt
Display and operation	colorful touch screen
sample number	Users can freely set the sample number
Store data	600 pieces
Printing function	Built in low-energy high-speed thermal printer, 56mm paper width
print contents	Display different contents based on user measurement formulas and measurement results
Calendar/Time	Display and print out the current time, date, detection time, and date
End point indication	Screen prompt/print output/sound warning/endpoint light indicator
Usage environment	Temperature 2 ℃ -50 ℃, humidity ‹ 90%
Power consumption	≤50W
Host size	400mm375mm170mm
supply voltage	220V 50HZ 150W
weight	The net weight of the host is 4kg, and after packaging, it is 7KG
