Features:
1. The shape of particle analysis:
For spherical, round degrees, roundness, length to diameter ratio, sphericity industries such as special shape parameter analysis of the particle is what other particle test equipment does not have.
2. Analysis of massive particles, representative data:

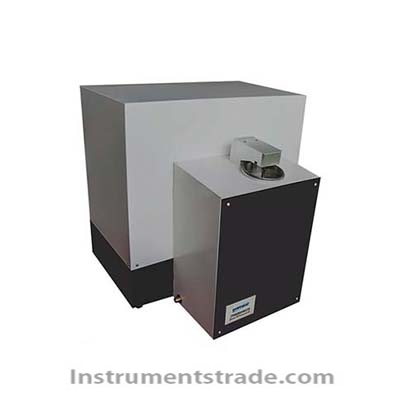

Compared with the static sample preparation methods, static image instrument WINNER100D can measure mass particles data, for the representation of the particle data is of great significance.
3. The two kinds of dynamic testing method:
Cycle test (in the same sample cycle test instrument, increase the stability of test result)
Online test (by adding online sampling device, which can realize the online test, get the state change of samples with different sampling periods)
4. More clear:
Big scene profound heart light path router sample window with constraint, effectively improve the clear degree of particle samples pictures. Technical parameters:
1. Optical components
Light path: independent telecentric light path system is designed
Mirror: belt edge distortion field lens to reduce distortion resistance and increase the depth of field
Test range: 1 micron - 3000 microns
Optical illumination: industrial high brightness LED spot illuminator
2. Image equipment
Imaging element: a third of an inch CCD chip
The highest resolution: 1920 x 1080
16 FPS frame rate:
Exposure time: 20 microseconds
3. The output parameter
: a single particle data area equivalent diameter, perimeter equivalent diameter, Martin diameter, perimeter, projection area, grain length, grain width and estimate estimate surface area, volume, the X, Y, tangential tangent, tangential diameter, spherical degree of length to diameter ratio
Statistical average diameter: Xnl, Xns, Xnv, Xls, Xlv, Xsv commonly used statistical mean diameter, etc
Particle size distribution, particle size distribution chart
The spherical degree distribution: particle spherical degree distribution chart
Distribution of length to diameter ratio, particle length to diameter ratio distribution chart.
Distribution: roundness particle roundness (roundness) distribution chart
Distribution types: according to the number of distribution, distribution by volume, according to the area of distribution, according to the length distribution, etc
Equivalent diameter type: area of equivalent diameter, perimeter of equivalent size, equivalent diameter, Martin needle-like particle size
Number statistics, such as test samples for grain samples, the number of particles in the sample can be obtained
Custom header: custom LOGO according to the meter and report information, such as testers
Original image/thumbnails: can save pictures with measurement data information, facilitate the published papers, etc
The shape of particle analysis: For spherical, round degrees, roundness, length to diameter ratio, sphericity industries such as special shape parameter analysis of the particle is what other particle test equipment does not have.
