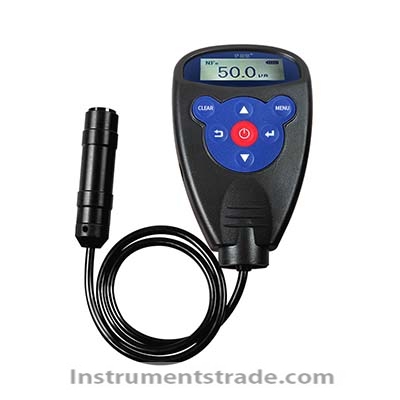

WH92 Dual Fe/NFe Coating Thickness Gauge

Position: Home > > Physical property test > Thickness gauge > Electromagnetic thickness gauge > WH92 Dual Fe/NFe Coating Thickness Gauge

WH92 Dual Fe/NFe Coating Thickness Gauge

Product ID：WCHdc020

Price: Please inquire PDF Format

Supply Ability:50 SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberWH92

Brand NameSZWEIFU

Payment TermsTT，PAYPAL，Alibaba.com Pay

WH92 Dual Fe/NFe Coating Thickness Gauge

Product Introduction
The WH92 Dual Fe/NFe Coating Thickness Gauge is a portable coating thickness tester that combines magnetic induction and eddy current measurement methods. It is designed to measure non-conductive coatings on ferrous substrates and non-ferrous metal coatings on suitable conductive substrates.
The separate probe is connected to the main unit by a cable, allowing the WH92 to access recessed surfaces, grooves, difficult-to-reach areas and external surfaces of aluminum alloy windows. It is particularly suitable for stable measurement of anodized coatings on aluminum alloy materials.
With a measurement range of 0–1250 μm, compact dimensions and a weight of only approximately 115 g including batteries, the WH92 is suitable for both laboratory inspection and field coating thickness measurement.

Performance Features
• Dual measurement technology: Combines magnetic induction and eddy current methods.
• Wide measurement range: Measures coating thickness from 0 to 1250 μm.
• Separate wired probe: Provides better access to grooves, recessed surfaces and difficult measurement locations.
• Stable anodized coating measurement: Particularly suitable for anodized aluminum alloy surfaces.
• Ferrous and non-ferrous metal measurement: Supports coating measurement on both iron/steel and suitable non-ferrous substrates.
• Compact and lightweight: Approx. 115 g including batteries.
• Simple calibration: Supports zero-point and two-point calibration.
• Low power consumption: Operates with two AA batteries.
• Portable design: Suitable for on-site inspection and quality control.

Working Principle
The WH92 Coating Thickness Gauge uses two different electromagnetic measurement principles according to the substrate material.
For ferrous substrates, such as iron and steel, the instrument uses the magnetic induction method. The probe generates a magnetic field, and the change in magnetic flux caused by the coating thickness is detected and converted into a coating thickness value.
For suitable non-ferrous conductive substrates, such as aluminum, the instrument uses the eddy current method. The probe generates an alternating electromagnetic field, producing eddy currents in the conductive substrate. The resulting electromagnetic response varies with the thickness of the coating and is converted into a thickness reading.
The separate probe allows the sensor to reach areas that are difficult to measure with an integrated probe, making the WH92 particularly useful for aluminum alloy windows, grooves, recessed surfaces and anodized coatings.

Technical Parameters

Parameter	Specification
Model	WH92
Measurement Method	Magnetic induction + Eddy current
Measurement Range	0–1250 μm
Power Supply	2 × AA batteries
Accuracy	Zero calibration: ±(1 + 3%H); Two-point calibration: ±(1%–3%H) + 1.5
Operating Temperature	0–40°C
Relative Humidity	≤85% RH
Minimum Substrate Area	10 × 10 mm
Minimum Curvature	Convex: 5 mm; Concave: 5 mm
Minimum Substrate Thickness	0.4 mm
Weight	Approx. 115 g, including batteries
Dimensions	110 × 65 × 30 mm
Probe Type	Separate wired probe

Note: H represents the measured coating thickness.

Applications
The WH92 Coating Thickness Tester is suitable for coating inspection and quality control in:
• Aluminum alloy window and door manufacturing
• Anodizing and surface treatment
• Metal manufacturing
• Automotive components
• Machinery manufacturing
• Hardware manufacturing
• Paint and coating industries
• Electroplating and surface finishing
• Construction materials
• Quality inspection laboratories
• On-site coating thickness inspection
Typical applications include measuring paint, anodized layers, protective coatings and other surface coatings on suitable ferrous and non-ferrous metal substrates.

Typical Measurement Applications

Substrate	Typical Measurement	Method
Iron / Steel	Paint and non-magnetic coatings	Magnetic induction
Steel Components	Protective coatings	Magnetic induction
Aluminum	Anodized coatings	Eddy current
Aluminum Alloy Windows	Surface anodized layer	Eddy current
Recessed Metal Surfaces	Coating thickness	Appropriate electromagnetic method
Grooved Components	Surface coating	Appropriate electromagnetic method

WH92 vs. Conventional Integrated-Probe Thickness Gauges

Feature	WH92	Conventional Integrated-Probe Gauge
Measurement Methods	Magnetic + Eddy current	Model dependent
Ferrous Substrates	✓	✓
Non-Ferrous Substrates	✓	Model dependent
Measurement Range	0–1250 μm	Model dependent
Probe	Separate wired probe	Usually integrated
Recessed Surfaces	Easy to access	May be difficult
Aluminum Window Surfaces	Suitable	May have limited access
Anodized Aluminum	Stable measurement	Model dependent
Portability	115 g	Model dependent
Calibration	Zero-point + two-point	Model dependent

The key advantage of the WH92 Dual Fe/NFe Coating Thickness Gauge is its separate wired probe combined with dual magnetic induction and eddy current measurement technology. This design improves accessibility for difficult measurement positions while providing a practical solution for both ferrous and non-ferrous metal coating inspection.
