Position: Home > > Lab general equipment > Pump > Injection pump > WH-SP-01 single channel syringe pump for Microfluidic control

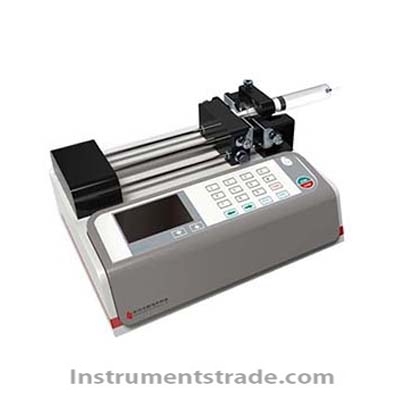

WH-SP-01 single channel syringe pump for Microfluidic control

Product ID:SYBzsb016

Price: Please inquire PDF Format
Supply Ability:1000 SETS/MONTH
Port:SHENZHEN
share:
  • Product Introduction
  • Consulting
  • Model NumberWH-SP-01
    Brand NameSZWH
    Payment TermsT/T, paypal
    Introduction:
    The WH-SP-01 single-channel syringe pump is a high-precision fluid control device independently developed by Suzhou Wenyi Chip Technology Co., Ltd. It is widely used in microfluidic control related fields due to its precision, stability and anti-interference ability. The indicators of this product have fully met and exceeded international standards. The device is easy to use and easy to operate. The parameter setting, modification and viewing of fluid control can be completed in the main interface of the boot. During the parameter input process, the model and inner diameter of the syringe can be selected directly from the list, or manually input, and then input. The parameters (flow, liquid volume, infusion type) can be used, the task can be suspended at any time during the work, and the parameters can be reset and executed immediately.
    Technical indicators:
    Dimensions: 300 × 130 × 225mm;
    Weight: 2.5~3kg;
    Number of channels: 1;
    Syringe type: 50ul~200ml;
    Injection volume per microstep: 0.107 ul (10 ml syringe);
    Maximum line speed: 65mm/min;
    Minimum line speed: 1mm/min;
    Working mode: injection, aspiration;
    Linear thrust: greater than 30kgf;
    Setting method: full button contact setting;
    Display mode: 72*44 LCD display;
    Working voltage: DC24V;
    Working environment: temperature 5~40 °C, relative humidity less than 80%;
    Key life: about one million times.

  • Introduction:
    The WH-SP-01 single-channel syringe pump is a high-precision fluid control device independently developed by Suzhou Wenyi Chip Technology Co., Ltd. It is widely used in microfluidic control related fields due to its precision, stability and anti-interference ability. The indicators of this product have fully met and exceeded international standards. The device is easy to use and easy to operate. The parameter setting, modification and viewing of fluid control can be completed in the main interface of the boot. During the parameter input process, the model and inner diameter of the syringe can be selected directly from the list, or manually input, and then input. The parameters (flow, liquid volume, infusion type) can be used, the task can be suspended at any time during the work, and the parameters can be reset and executed immediately.
