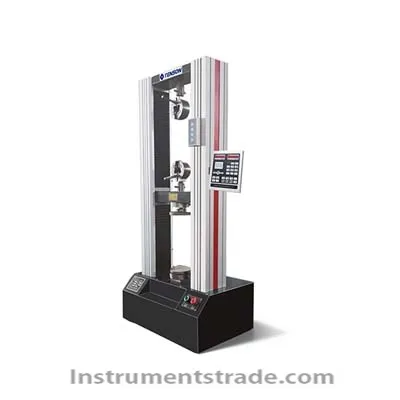

WDS-20 digital electronic universal testing machine

Product ID:WSHwn022

Price: Please inquire PDF Format
Supply Ability:20SETS/MON
Port:SHENZHEN
share:
  • Product Introduction
  • Consulting
  • Brand NameYIMA
    Payment TermsT/T, paypal
    Model NumberWDS-20
    Introduction:
    The testing machine is suitable for many kinds of tests such as stretching, compressing, bending, shearing, stripping and tearing of metal and nonmetal materials, such as rubber, plastic, wire and cable, composite material, plastic profile, Plate, spring, components and so on. Executable GB, ISO, JIS, DIN, ASTM and other test standards, and according to user needs editing test software. Is the quality inspection units, research departments, universities, industrial and mining enterprises necessary testing equipment.
    Specifications:
    1, the maximum test force: 20kN;
    2, the test force measurement range: (0.4 ~ 20) kN;
    3, the test force accuracy: better than ± 1% of the indication;
    4, beam displacement measurement resolution: 0.01 mm;
    5, the beam speed range: 0.01mm / min ~ 500mm / min, stepless speed regulation, arbitrarily set;
    6, the effective test space: 800mm;
    7, test space width: 370mm;
    8, the power supply voltage: 380V ± 10%, 50Hz;
    9, working environment: room temperature ~ 30 , relative humidity less than 80%;
    10, Host Dimensions: 740 × 500 × 1680 (mm);
    11, Weight: 450kg.
    Host configuration:
    1, high-precision load cell;
    2, imported AC servo motor and servo drive;
    3, precision reducer;
    4, precision ball screw;
    5, liquid crystal display controller.
