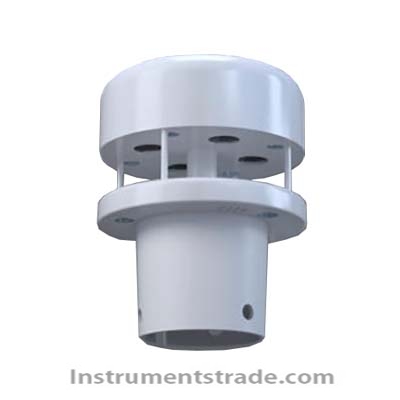

WDC2 ultrasonic anemometer

Product ID：HQQTfs047

Price: Please inquire PDF Format

Supply Ability:50 SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberWDC2

Brand NameCDHONGYUE

Payment TermsTT，PAYPAL，Alibaba.com Pay

WDC2 ultrasonic anemometer
Introduction:
The HY-WDC2 series ultrasonic anemometer utilizes a low-power chip with a power consumption of only 0.7W, making it particularly suitable for use in solar or battery-powered environments where power consumption is critical. Thanks to the adoption of new technologies and processes, the structure is more compact and compact. It can also be equipped with solar radiation and solar irradiance detection modules, making it ideal for use with agricultural meteorological systems. The housing is made of engineering plastic and comes in black and white for users to choose from. It is mainly used in home weather stations, agricultural meteorological detection, tower crane wind speed monitoring, etc.
Features:
1.Maintenance-free, with a long service life
2.No moving parts, zero wear and tear
3.Engineering plastic or aluminum alloy casing, more lightweight
4.Using ultrasonic probe reflection type, the structure is more compact
5.Using acoustic phase compensation technology, the accuracy is higher
Technical Specifications:

	measurement range	Precision (Degree)	resolution
wind speed	0 - 40m/s	± 3 ％	0.1m/s
wind direction	0 - 359 °	± 3 °	1 °
Temperature (optional)	-40 ℃ － +80 ℃	± 0.2 ℃	0.01 ℃
Humidity (optional)	0 － 100%	±1. 5 ％	0.01%RH
Air pressure (optional)	150 － 1100hPa	±2	0.01hPa
Rainfall (optional)	0-200mm/h	± 5 ％	0.1mm
digital output	RS232, RS485, SDI-12 (choose one)
communication baud rate	4800 - 19200
communication protocol	ModBus, NMEA-0183
Protection level	IP65
Operating temperature	-20 ℃ - +60 ℃
Operating Humidity	0 - 100%
Power demand	VDC: 3-30V
power consumption	0.2W (wind speed, wind direction, temperature and humidity, air pressure) + 1.5W (rainfall)
External dimensions / Weight	Φ 84 × 120mm ABS: 0.38kg Aluminum alloy: 0.78kg
material	ABS engineering plastic / aluminum alloy
