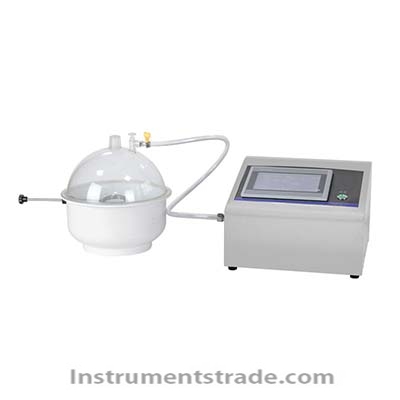

VM-6000 Fully Automatic Vacuum Cold Embedding Machine

Product ID：Otherlxqj026

Price: Please inquire PDF Format

Supply Ability:50 SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberVM-6000

Brand NameNAIBO

Payment TermsTT，PAYPAL，Alibaba.com Pay

VM-6000 Fully Automatic Vacuum Cold Embedding Machine
Introduction:
The VM-6000 fully automatic vacuum cold embedding machine adopt
s PLC control, high-strength vacuum chamber, and built-in vacuum pump to complete the entire embedding process of multiple vacuum extractions, maintaining vacuum, and releasing air with one click. Sample inlay, by eliminating air from the sample and cold inlay material, liquid inlay material fills the gaps inside the sample, eliminating the gaps between the sample and inlay material, thereby achieving a tight bond between the sample and inlay material. The sample is also well protected and supported during the grinding and polishing process.
Features:
1.High vacuum:-0.06MPa (-60KPa)
2.One click completion of multiple vacuuming, maintaining vacuum, and releasing air cycles throughout the entire embedding process;
3.Process parameters such as vacuum degree, vacuum holding time, deflation, cycle times, and embedding completion reminder can be set; 4.999 sets of process parameters, set according to different materials and samples, password protected for easy access;
5. Quickly reach the set high vacuum.
6. Large volume, transparent vacuum chamber;
7. Equipped with a built-in vacuum pump, low noise, oil-free, pollution-free, and maintenance free.
8. Both embedded samples and liquid embedded materials can be pre vacuumed;
9. Using the rotating cup holder inside the vacuum container, multiple samples can be poured into the mold at once in vacuum for vacuum embedding;
10. A dedicated air release valve that can implement multiple cycles of air extraction and release embedding processes.
Technical parameters:

Quantity of embedded samples	>10 pieces (when using a 30mm diameter inlay mold)
Chamber Size	300Lx 300W x 300H mm
Maximum vacuum degree	-0.06MPa(-60KPa)
pumping time	Less than 1 minute
mold	Suitable for molds of various shapes: diameter 20, 40, 50mm, or rectangular molds, or disposable molds
External dimensions	Vacuum container: 300Lx 300W x 300H mm Main cabinet: L230 × W300 × H230mm
power supply	220V，50/60Hz， 200W
weight	Vacuum chamber: 1.15kg Main cabinet: 10Kg
