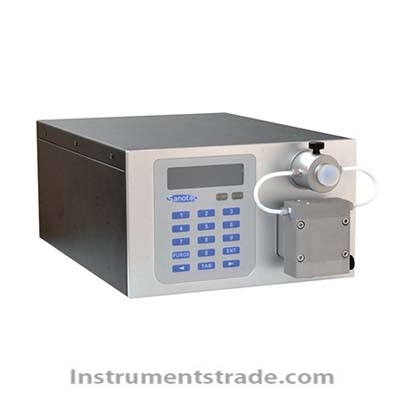

VF0105A PTFE high viscosity high pressure metering pump

Product ID：15571

Price: Please inquire PDF Format

Supply Ability:150 SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberVF0105A

Brand NameSHSANWEI

Payment TermsTT，PAYPAL，Alibaba.com Pay

VF0105A PTFE high viscosity high pressure metering pump
Introduction:
The characteristics of VF0105A high-viscosity PTFE high-pressure metering pump are: high viscosity (0-1000 centipoise), fluorine flow path, high pressure resistance, and high precision. It is a newly developed high-pressure PTFE pump that can withstand a pressure of 5MPa for high-viscosity corrosive materials in the chemical and chemical fields, catalytic refining and other industries. High-pressure transportation requirements. VF high-pressure fluorine pump also has: online flow and pressure change curve, client flow correction, volume conveying function and weight conveying function, Modbus RTU and ASCII protocol, RS232/RS485/usb, PLC analog input: 0-5V, 4-20 mA, reactor and chemical reaction device pump inlet weight reduction weighing and metering system; It has high flow accuracy, low pressure pulse, good repeatability, and excellent quality. It is widely used in chemical feeding, reactant addition, catalyst addition, supercritical fluid transportation, and foaming in microreactors, chemical reaction devices, catalytic evaluation devices. Supporting equipment for extrusion technology, new energy research, catalytic refining kettle reaction and other devices.
Features:
1. Pressure protection setting: the upper and lower limits of the maximum pressure can be set;
2. The pressure pulse is low, using cam curve compensation and flow pulse electronic suppression technology;
3. Flow rate unit switching: ml/min by volume and g/min by mass;
4. Flow calibration: Provide a user parameter area to calibrate the flow rate of the pump to meet the needs of different system working conditions;
5. Flow control program: two operating programs are provided, constant current operation and gradient operation;
6. Pressure curve display: Each equipment displays the current pressure curve respectively to intuitively judge the operating status of the equipment;
7. Flow curve display: Each device displays the current running flow curve respectively;
8. Plunger rod cleaning system to prolong the service life of the pump;
9. Support RS-232, RS-485, RS-422, USB communication; Modbus RTU and ASCII protocols;
10. One-to-many control, single pump operation and multi-element gradient operation can be freely selected, and 1-to-32 operations can be expanded;
11. Running data saving: Start or stop data recording, and save the pressure curve and flow curve to Excel format file.
12. Save the setting method: Save the operating parameter settings, such as serial port parameters, pressure protection values, flow control programs, etc.
13. Closed-loop control of the fluid inlet balance weight reduction system can be realized (customized according to the customer's balance specifications).
Technical parameters:

Serial number	Product model	VF0105A	VF0505A	VF1005A
1	Material of pump head	PCTFE pump head embedded in stainless steel, threaded on stainless steel
2	Mode of infusion	Double plunger parallel mode, floating plunger design
3	Viscosity range	0-1000cP	0-400cP	0-300cP
4	Flow Range	0.01-10.00/min	0.01-50.00/min	0.01-100.00/min
5	Increment	0.01 ml/min
6	Flow accuracy	± 0.5%
7	Flow repeatability	≤ 0.1%
8	Pressure range	≤ 5 Mpa
9	Pressure pulsation	≤ 0. 05 Mpa
10	Flow path material	PCTFE, PTFE, Ruby, Ceramic, Hastelloy
11	Outlet line	φ3mm, φ3.175, φ4mm
12	Flow correction function	Multi-parameter flow correction function in user flow range
13	Communication function	RS232, RS485, USB; Modbus RTU Communication protocol
14	Upper computer software	SanoFlu Fluid Control Management System
15	power supply	85 ~ 264VAC, 50Hz
16	Dimensions	370 × 240 × 152 mm3
