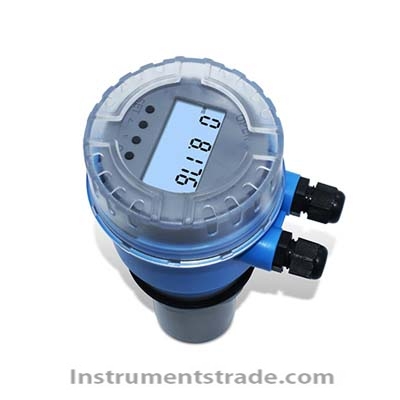

UTG1000E Integrated Four-Wire Ultrasonic Level Gauge Introduction: UTG1000E is an integrated four-wire ultrasonic level gauge launched by our company. Based on the principle of non-contact echo ranging + real-time temperature compensation, it has a measurement range of 0~10/15/20m and a resolution of 1mm. With four-wire independent power supply and signal transmission, it is suitable for various industrial level measurement scenarios such as chemical industry, water treatment, and environmental protection. Features: 1. Non-contact measurement, maintenance-free and low failure rate The probe does not come into contact with the medium, thus avoiding risks of corrosion, scaling, adhesion, and contamination. It is particularly suitable for liquids that are corrosive, high viscosity, or contain suspended solids. With no moving parts, it boasts a long MTBF (Mean Time Between Failures) and low maintenance costs 2. Four-wire system architecture, stable and anti-interference Independent 24VDC power supply + 4~20mA signal transmission, avoiding interference and transmission distance limitations caused by power supply/signal sharing in a two-wire system; suitable for long-distance (hundreds of meters) signal transmission and complex industrial electromagnetic environments 3. Intelligent signal processing, precise measurement Real-time temperature compensation eliminates the impact of ambient temperature changes on sound velocity, ensuring full-range accuracy The microprocessor optimizes the echo recognition algorithm, filters out interfering echoes, and adapts to complex working conditions (such as stirring, foam, and fluctuating liquid levels) High-precision AD conversion with a resolution of 1mm meets the needs of precise liquid level control 4. Flexible adaptation and strong usability The measurement range can be customized (0~10m/15m/20m), with the starting/ending points of measurement set arbitrarily, and on-site calibration is convenient LCD large screen display, Chinese menu, button operation, supports dual display of liquid level/distance Optional RS485 digital output (Modbus-RTU protocol), compatible with PLC, DCS, and various host computer systems The probe material can be selected from conventional, PE, and PTFE, adapting to different corrosive working conditions 5. High protection and safety design IP67 fully sealed casing, suitable for harsh environments such as outdoor, humid, dusty, etc Multiple protections for signal interfaces (surge / static electricity / lightning protection) enhance reliability Technical Specifications: Measuring Range: 0~10m (customizable according to actual measuring range) 0~15m (customizable according to actual measuring range) 0~20m (customizable according to actual measuring range) Probe material: Conventional probe (depending on working conditions) PE probe (depending on working conditions) PTFE probe (depending on working conditions) Resolution: 1mm Blind zone: 0.35~0.6m Signal output: 4-20mA or RS485 Ranging accuracy: ±0.5% (under standard conditions) Pressure range: Atmospheric pressure Power supply voltage: 24VDC or 220VAC Ambient temperature: -20~60℃ Protection level: IP66
UTG1000E Integrated Four-Wire Ultrasonic Level Gauge Introduction: UTG1000E is an integrated four-wire ultrasonic level gauge launched by our company. Based on the principle of non-contact echo ranging + real-time temperature compensation, it has a measurement range of 0~10/15/20m and a resolution of 1mm. With four-wire independent power supply and signal transmission, it is suitable for various industrial level measurement scenarios such as chemical industry, water treatment, and environmental protection.
