UPW-Q700HXJ Anionic Surfactant Analyzer

Position: Home > > Environmental monitoring and analysis > Inorganic pollutants in water detection > Ion detector > UPW-Q700HXJ Automatic Anionic Surfactant Analyzer

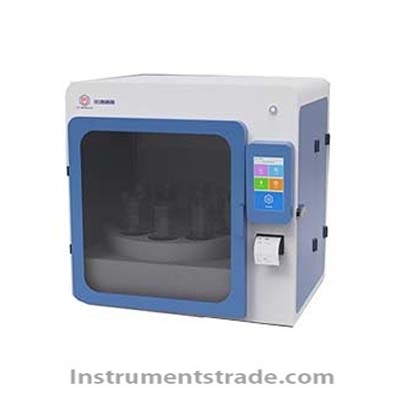

UPW-Q700HXJ Automatic Anionic Surfactant Analyzer

Product ID：HSWJlz021

Price: Please inquire PDF Format

Supply Ability:50 SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberUPW-Q700HXJ

Brand NameYOUPUTONGYONG

Payment TermsTT，PAYPAL，Alibaba.com Pay

UPW-Q700HXJ Automatic Anionic Surfactant Analyzer

Product Introduction
The UPW-Q700HXJ Automatic Anionic Surfactant Analyzer is designed to determine anionic surfactants in tap water, surface water, and wastewater. Based on the methylene blue spectrophotometric method, it automates sample preparation, reagent addition, extraction, phase separation, measurement, data processing, and cleaning.
Traditional manual testing involves labor-intensive pretreatment, considerable reagent consumption, and direct handling of extraction solvents such as chloroform. The UPW-Q700HXJ integrates these procedures into an automated system, reducing routine manual operations and limiting operator contact with extraction reagents.
With a built-in 7-inch touchscreen, automatic standard preparation, and batch-sampling capability, this analyzer is suitable for environmental monitoring laboratories, water quality testing facilities, and research institutions.

Performance Features
• Fully automated analysis: Automates reagent dispensing, extraction, back-extraction, separation, sample introduction, measurement, and cleaning.
• Enclosed extraction system: Helps reduce operator exposure to extraction solvents during routine testing.
• Standalone touchscreen control: The built-in 7-inch touchscreen and control system eliminate the need for a separate computer during routine operation.
• Integrated sample processing: Combines sample loading and pretreatment in one compact system.
• Automatic batch testing: Supports continuous analysis of multiple samples with automatic measurement and data storage.
• Automatic moisture removal: Uses an imported oil-water separation membrane to remove water and impurities from the extract.
• Precise reagent dispensing: Combines precision syringes with peristaltic pumps to improve dispensing accuracy and processing efficiency.
• Adjustable extraction ratio: Allows users to adjust the extraction ratio according to testing requirements.
• Automatic calibration preparation: Automatically prepares standards at different concentrations and generates calibration curves.
• Automatic result printing: Prints measurement results directly from the instrument.

Working Principle
The UPW-Q700HXJ uses the methylene blue spectrophotometric method for anionic surfactant determination, following the referenced GB 7494-87 method and GB/T 5750.4-2006 standard.
The analyzer automatically adds methylene blue reagent and an extraction solvent to the water sample. Anionic surfactants react with methylene blue to form a blue ion pair that can be extracted into the organic phase. After repeated extraction and back-extraction, the analyzer removes residual water, transfers the prepared extract into a spectrophotometer flow cell, and measures absorbance at 652 nm.
The instrument calculates the anionic surfactant concentration from the calibration curve prepared using standard solutions, with results expressed as LAS-equivalent concentration.

Technical Specifications

Parameter	Specification
Model	UPW-Q700HXJ
Measurement Item	Anionic surfactants
Applicable Samples	Tap water, surface water, wastewater
Measurement Method	Methylene blue spectrophotometric method
Referenced Standards	GB 7494-87; GB/T 5750.4-2006
Measurement Range	0.10–2.0 mg/L, expressed as LAS standard
Sample Volume	100 mL
Measurement Wavelength	652 nm
Absorbance Range	0.0000–3.0000 A
Extraction Recovery	>95%
Linear Correlation Coefficient	>0.999
Measurement Time	10–20 minutes
Standard Preparation	Automatic preparation of standards at different concentrations
Calibration	Automatic calibration curve generation
Liquid Handling	Precision syringe and peristaltic pump
Operation	Standalone automatic batch testing
Display	7-inch touchscreen
Result Output	Automatic printing and data storage
Power Supply	220 V ±10%, 50 Hz
Rated Power	200 W

Application Scenarios
The UPW-Q700HXJ automatic anionic surfactant analyzer is suitable for:
• Tap water and drinking-water quality testing
• Surface water and river-water monitoring
• Municipal and industrial wastewater analysis
• Environmental monitoring laboratories
• Water treatment plant testing
• Industrial pollution monitoring
• University and scientific research laboratories
• Routine testing of anionic detergent residues in water

UPW-Q700HXJ vs. Manual Methylene Blue Testing

Comparison Item	UPW-Q700HXJ Automatic Analyzer	Manual Spectrophotometric Method
Sample Preparation	Automated	Manual
Reagent Addition	Automated dispensing	Manual dispensing
Extraction and Separation	Automated	Manual
Measurement	Automated at 652 nm	Spectrophotometer operated manually
Batch Testing	Supports automatic batch analysis	Requires repeated manual handling
Calibration	Automatic standard preparation and curve generation	Depends on laboratory procedure
Cleaning	Automated cleaning cycle	Usually performed manually
Solvent Exposure	Enclosed extraction helps reduce direct contact	Greater potential for direct operator contact
Labor Requirement	Reduced routine intervention	More hands-on work
Typical Use	Routine and batch water quality analysis	Laboratories with manual testing workflows

Frequently Asked Questions
Q1: What does the UPW-Q700HXJ measure?
It measures anionic surfactants in tap water, surface water, and wastewater using the methylene blue spectrophotometric method.
Q2: What is the measurement range?
The specified range is 0.10–2.0 mg/L, expressed as LAS-equivalent concentration.
Q3: Why is methylene blue used?
Methylene blue reacts with anionic surfactants to form a colored ion pair that can be extracted and measured spectrophotometrically.
Q4: What wavelength does the analyzer use?
The specified measurement wavelength is 652 nm.
Q5: How long does one measurement take?
The specified measurement time is approximately 10–20 minutes. Actual throughput depends on the sample batch and operating conditions.
Q6: Does the instrument require a separate computer?
No. Routine operation is controlled through the built-in 7-inch touchscreen. The instrument also supports automatic result printing and data storage.
Q7: Does the analyzer reduce operator exposure to extraction solvents?
Yes. Its enclosed automatic extraction system is designed to reduce direct operator contact with extraction solvents. Appropriate laboratory ventilation and chemical safety procedures are still required.
Q8: Can the analyzer prepare calibration standards automatically?
Yes. It can automatically prepare standards at different concentrations and generate the corresponding calibration curve.
Q9: Which standards are listed for this instrument?
The supplied specifications reference GB 7494-87 and GB/T 5750.4-2006. Laboratories should verify the applicable current standard and method requirements before compliance testing.
