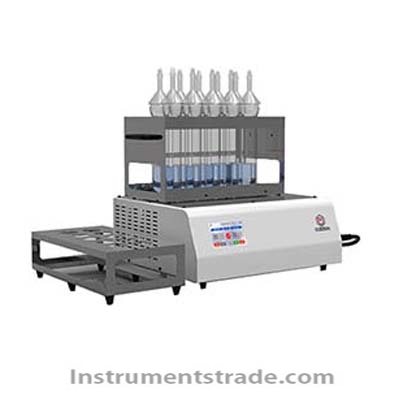

UPT-XH20 Intelligent Constant-Temperature Digestion Block

Product ID：SYZYXJdrxj048

Price: Please inquire PDF Format

Supply Ability:50 SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberUPT-XH20

Brand NameYOUPUTONGYONG

Payment TermsTT，PAYPAL，Alibaba.com Pay

UPT-XH20 Intelligent Constant-Temperature Digestion Block

Product Introduction
The UPT-XH20 Intelligent Constant-Temperature Digestion Block is a laboratory sample preparation instrument designed for chemical analysis of soil, feed, plants, seeds, ores, and other materials. It is widely used in food testing, pharmaceuticals, agriculture, forestry, environmental monitoring, chemical analysis, biotechnology, universities, and research laboratories.
With a 20-position heating block, the UPT-XH20 can digest up to 20 samples simultaneously, improving laboratory throughput and processing consistency. Its intelligent PID temperature control system provides stable, uniform heating up to 450°C, while advanced insulation and corrosion-resistant surface treatment enhance operational safety and durability.
The instrument is also suitable as a sample pretreatment unit for Kjeldahl nitrogen analysis.

Performance Features
• 20-sample capacity: Processes up to 20 samples simultaneously to improve laboratory efficiency.
• Intelligent PID temperature control: Provides precise, stable temperature regulation with a specified accuracy of ±1°C.
• Fast heating: Heats from room temperature to 400°C in approximately 25 minutes.
• Uniform heat distribution: Three-dimensional surrounding heating helps distribute heat evenly across the samples.
• Advanced thermal insulation: Reduces external housing temperature rise and improves operating safety.
• Corrosion-resistant design: Specially treated upper surfaces, work surfaces, and tube racks provide resistance to acidic and alkaline environments.
• Enhanced heating-block durability: Anti-oxidation treatment helps extend heating-block service life.
• Intelligent fault monitoring: Monitors heating elements and provides automatic alarms when abnormalities are detected.
• Multiple protection functions: Includes overvoltage, overcurrent, and overtemperature protection.
• Optional touchscreen control: A high-end color touchscreen can provide an enhanced human-machine interface and timed operation with automatic shutdown.
• Optional programmable heating: Up to 30 heating-program stages can be configured for different digestion procedures.

Working Principle
The UPT-XH20 uses controlled block heating to digest laboratory samples before chemical analysis.
1. Sample preparation: Samples and suitable digestion reagents are placed in compatible digestion tubes.
2. Positioning: The tubes are placed into the 20-position heating block.
3. Controlled heating: The intelligent PID controller regulates the heating elements to reach and maintain the selected temperature.
4. Uniform digestion: The surrounding heating structure promotes consistent heat transfer among sample positions, supporting reproducible digestion.
5. Safety monitoring: The system monitors heating-element status and incorporates electrical and temperature protection functions.
After digestion and appropriate cooling, the prepared samples can be used for subsequent analytical procedures, including Kjeldahl nitrogen determination where applicable.

Technical Specifications

Parameter	Specification
Model	UPT-XH20
Instrument Type	Intelligent Constant-Temperature Digestion Block
Number of Digestion Positions	20
Temperature Range	Room temperature to 450°C
Temperature Control	Intelligent temperature control with PID
Temperature Accuracy	±1°C
Heating Rate	Approximately 20°C/min
Heating Time	Approximately 25 minutes from room temperature to 400°C
Power Supply	AC 220 V
Power Consumption	3.6 kW
Heating Structure	Three-dimensional surrounding heating
Safety Protection	Overvoltage, overcurrent, and overtemperature protection
Heating Element Monitoring	Intelligent status monitoring with automatic alarm
Corrosion Resistance	Specially treated work surface and tube rack
Optional Control Interface	Color touchscreen
Optional Timed Operation	Timer with automatic shutdown
Optional Programmable Heating	Up to 30 program stages

Application Scenarios
• Food testing laboratories: Digestion of food samples before chemical analysis.
• Pharmaceutical laboratories: Sample preparation for analytical testing.
• Agriculture and forestry: Digestion of soil, plant, seed, and feed samples.
• Environmental monitoring: Pretreatment of soil and other environmental samples.
• Mining and chemical industries: Digestion of ore and chemical samples.
• Universities and research institutes: Routine and experimental sample digestion.
• Kjeldahl nitrogen analysis: Sample digestion before nitrogen determination.

Comparison with Conventional Laboratory Digestion Equipment

Feature	UPT-XH20 Intelligent Digestion Block	Conventional Digestion Equipment
Sample Capacity	20 samples simultaneously	Depends on model
Temperature Control	Intelligent PID control	Depends on control system
Temperature Accuracy	±1°C specified	Model-dependent
Maximum Temperature	450°C	Model-dependent
Heating Uniformity	Three-dimensional surrounding heating	Depends on heating structure
Heating Element Monitoring	Intelligent monitoring and alarms	Depends on model
Safety Protection	Overvoltage, overcurrent, and overtemperature protection	Depends on configuration
Corrosion Resistance	Specially treated surfaces and tube rack	Depends on materials
Programmable Heating	Optional 30-stage program	Depends on model
Touchscreen Operation	Optional	Depends on model

Frequently Asked Questions
Q1: What is the UPT-XH20 digestion block used for?
It is used to digest laboratory samples before chemical analysis, including soil, feed, plant, seed, and ore samples.
Q2: How many samples can it process at once?
The instrument has 20 digestion positions and can process up to 20 samples simultaneously.
Q3: What is the maximum operating temperature?
The specified maximum temperature is 450°C.
Q4: How accurate is the temperature control?
The specified temperature control accuracy is ±1°C using intelligent PID control.
Q5: How quickly can the instrument heat up?
The stated heating time from room temperature to 400°C is approximately 25 minutes.
Q6: Is the UPT-XH20 suitable for Kjeldahl nitrogen analysis?
Yes. It is designed to serve as a digestion pretreatment unit for Kjeldahl nitrogen analysis.
Q7: Does the instrument support programmable digestion procedures?
A 30-stage programmable heating function is available as an option.
Q8: What safety features are included?
The instrument incorporates overvoltage, overcurrent, and overtemperature protection, as well as heating-element monitoring and fault alarms.
Q9: Is a touchscreen included as standard?
The source lists the high-end color touchscreen as an optional feature. Confirm the selected configuration when ordering.
