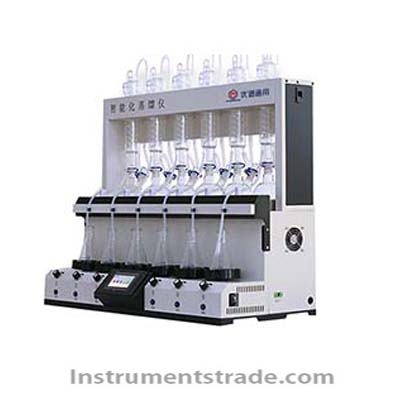

UP-ZL2 Automatic Integrated Distillation Unit

Position: Home > > Lab general equipment > Purification equipment > Distillation apparatus > UP-ZL2 Automatic Integrated Distillation Unit

UP-ZL2 Automatic Integrated Distillation Unit

Product ID：SYCHZL035

Price: Please inquire PDF Format

Supply Ability:50 SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberUP-ZL2

Brand NameYOUPUTONGYONG

Payment TermsTT，PAYPAL，Alibaba.com Pay

UP-ZL2 Automatic Integrated Distillation Unit

Product Introduction
The UP-ZL2 Automatic Integrated Distillation Unit is designed for laboratory sample pretreatment where distillation is required before analytical testing. Integrating heating, temperature control, endpoint detection, and safety protection, the instrument automates routine distillation procedures to improve operational convenience, consistency, and laboratory efficiency.
The unit features six independently controlled infrared ceramic heating positions, intelligent endpoint control using a weighing sensor and time settings, and an automatic cleaning function. Its flame-free heating design, anti-suckback protection, anti-dry-burning protection, and anti-bumping safeguards help support safer operation. A circulating cooling-water system helps reduce water consumption during condensation.
The UP-ZL2 is suitable for sample preparation in environmental monitoring, water supply and drainage testing, public health laboratories, research institutes, universities, and industrial laboratories. Typical applications include distillation pretreatment for volatile phenols, cyanide, ammonia nitrogen, cation exchange capacity, Kjeldahl nitrogen, and water in oil, subject to the applicable analytical method.

Performance Features
1. Six independent distillation positions: Processes multiple samples in parallel, with independent heating control for each position.
2. Intelligent endpoint control: Combines weighing-sensor feedback, time control, and endpoint locking to support automated distillation termination.
3. Automatic cleaning: One-touch cleaning simplifies routine maintenance and helps reduce manual handling.
4. Infrared ceramic heating: Replaces conventional electric heating mantles or hot plates with flame-free, water-resistant ceramic heating elements designed for laboratory use.
5. Individual temperature control: Each position supports automatic temperature control from ambient temperature to 500°C.
6. Adjustable timing: Programmable distillation time from 0 to 300 minutes.
7. Multiple safety protections: Includes anti-suckback, over-distillation protection, anti-dry-burning protection, anti-bumping protection, and leakage protection.
8. Efficient condensation: A vacuum condenser design supports rapid distillation, while a circulating cooling-water system helps conserve water.
9. Touchscreen operation: A 5-inch LCD touchscreen provides an accessible interface for setting and monitoring operating parameters.
10. Automated sample processing: Supports timed and quantity-based distillation for individual positions, helping reduce the need for continuous manual supervision.

Working Principle
The UP-ZL2 uses controlled infrared ceramic heating to heat samples in distillation flasks. Volatile components are vaporized and transferred through the condenser, where cooling water removes heat and converts the vapor into liquid distillate for collection.
During operation, the instrument controls heating temperature and distillation time. Its endpoint-control system combines weighing-sensor feedback, time settings, and endpoint locking to help determine when the configured distillation process should stop. Independent control of each heating position allows different samples or procedures to be managed according to their settings.
Built-in protection functions help prevent reverse suction, overheating caused by dry heating, excessive distillation, and bumping. Users should configure the instrument according to the relevant analytical method and the physical and chemical properties of the sample.

Technical Parameters

Parameter	Specification
Model	UP-ZL2
Product type	Automatic integrated distillation unit
Display	5-inch LCD touchscreen
Heating method	Far-infrared ceramic heating; flame-free and water-resistant
Number of distillation positions	6 independent heating positions
Temperature control	Independent automatic temperature control for each position
Temperature range	Ambient temperature to 500°C
Time control	0–300 minutes
Endpoint control	Weighing sensor, time control, and endpoint locking
Anti-suckback protection	Yes
Over-distillation protection	Yes
Anti-dry-burning protection	Yes
Anti-bumping protection	Yes
Automatic cleaning	One-touch cleaning function
Cooling method	Circulating cooling-water system
Distillation flasks	500 mL × 6, standard
Distillate receiving bottles	250 mL × 6, standard
Leakage protection	Yes
Rated voltage	220 V / 50 Hz
Rated power	3500 W, adjustable
Dimensions	950 × 500 × 700 mm
Typical applications	Distillation pretreatment for volatile phenols, cyanide, ammonia nitrogen, and other applicable analyses

Application Scenarios
• Environmental monitoring laboratories: Sample distillation before testing for cyanide, volatile phenols, and ammonia nitrogen.
• Water supply and wastewater laboratories: Pretreatment of water samples for routine quality analysis.
• Public health and disease control laboratories: Preparation of samples requiring distillation before analysis.
• Universities and research institutes: Routine analytical chemistry experiments and method development.
• Industrial laboratories: Sample pretreatment for chemical and environmental testing.
• Oil and chemical testing: Distillation-based pretreatment for applicable analyses, including water-in-oil testing where supported by the relevant method.

UP-ZL2 vs. Conventional Laboratory Distillation

Comparison Item	UP-ZL2 Automatic Integrated Distillation Unit	Conventional Manual Distillation Setup
Sample throughput	Six independent positions	Depends on the number of separate heating setups
Heating method	Infrared ceramic heating	Often uses hot plates or heating mantles
Temperature control	Automatic, independently configurable	May require manual adjustment or separate controllers
Endpoint management	Sensor-assisted and time-based control	Often relies on manual observation or separate measurement
Cleaning	One-touch automatic cleaning function	Usually requires manual cleaning
Safety features	Integrated anti-suckback, anti-dry-burning, anti-bumping, and leakage protection	Depends on the equipment and setup
Cooling water	Circulating cooling-water system	Depends on the condenser arrangement
Operation	Touchscreen control with automated functions	Typically involves more manual intervention

Note: The comparison describes general workflow differences. Actual performance and automation depend on the specific conventional equipment and laboratory procedure.

Frequently Asked Questions
1. What is the UP-ZL2 Automatic Integrated Distillation Unit used for?
It is used for laboratory sample pretreatment when distillation is required, particularly for water-quality testing involving volatile phenols, cyanide, and ammonia nitrogen.
2. How many samples can the UP-ZL2 process at once?
The unit has six independent infrared ceramic heating positions and comes with six 500 mL distillation flasks and six 250 mL receiving bottles.
3. What is the temperature control range?
Each position supports automatic temperature control from ambient temperature to 500°C.
4. How is the distillation endpoint controlled?
The endpoint-control system combines a weighing sensor, time control, and endpoint locking. The actual termination settings should be configured according to the analytical method.
5. What safety protections are included?
The instrument includes anti-suckback, over-distillation, anti-dry-burning, anti-bumping, and electrical leakage protection.
6. Does the instrument support automatic cleaning?
Yes. It features a one-touch automatic cleaning function to simplify routine cleaning after distillation.
7. How does the UP-ZL2 help reduce cooling-water consumption?
It uses a circulating cooling-water system that recirculates cooling water, helping reduce water consumption compared with once-through cooling arrangements.
8. What sample flask sizes are included?
The standard configuration includes six 500 mL distillation flasks and six 250 mL distillate receiving bottles.
9. Can the UP-ZL2 be used for all water-quality distillation methods?
Not necessarily. Suitability depends on the analytical method, sample properties, required distillation conditions, and compatible accessories. Confirm the method requirements before use.

Frequently Asked Questions
1. What is the UP-ZL2 Automatic Integrated Distillation Unit used for?
It is used for laboratory sample pretreatment when distillation is required, particularly for water-quality testing involving volatile phenols, cyanide, and ammonia nitrogen.
2. How many samples can the UP-ZL2 process at once?
The unit has six independent infrared ceramic heating positions and comes with six 500 mL distillation flasks and six 250 mL receiving bottles.
3. What is the temperature control range?
Each position supports automatic temperature control from ambient temperature to 500°C.
4. How is the distillation endpoint controlled?
The endpoint-control system combines a weighing sensor, time control, and endpoint locking. The actual termination settings should be configured according to the analytical method.
5. What safety protections are included?
The instrument includes anti-suckback, over-distillation, anti-dry-burning, anti-bumping, and electrical leakage protection.
6. Does the instrument support automatic cleaning?
Yes. It features a one-touch automatic cleaning function to simplify routine cleaning after distillation.
7. How does the UP-ZL2 help reduce cooling-water consumption?
It uses a circulating cooling-water system that recirculates cooling water, helping reduce water consumption compared with once-through cooling arrangements.
8. What sample flask sizes are included?
The standard configuration includes six 500 mL distillation flasks and six 250 mL distillate receiving bottles.
9. Can the UP-ZL2 be used for all water-quality distillation methods?
Not necessarily. Suitability depends on the analytical method, sample properties, required distillation conditions, and compatible accessories. Confirm the method requirements before use.
