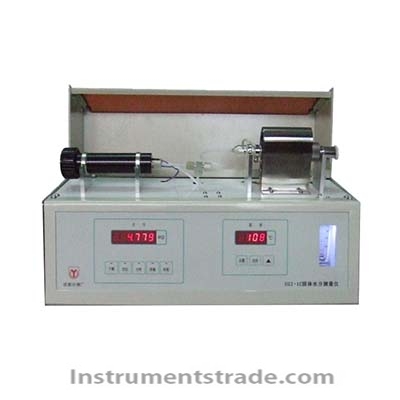

UGI-1C Solid Micro Moisture Analyzer Introduction: The instrument employs the electrolytic measurement principle, featuring advantages such as a wide measurement range, high accuracy, low sample consumption, and simple operation. It is widely used for measuring the moisture content in solid materials like chemical fibers, plastics, pharmaceuticals, minerals, and crystalline hydrates. Features: 1. Set the zero adjustment to automatic timed display, eliminating the need for manual timing. 2. It employs microcomputer-controlled programming and automatic determination of the analysis endpoint, eliminating human factors and improving analytical accuracy. 3. Equipped with an internal verification circuit, it allows for real-time inspection of the circuit's reliability. 4. The furnace port has been replaced with a metal structure, fundamentally overcoming the drawback of glass ports being prone to breakage. 5. Supply of steel cylinder pressure reducing valves as accessories Technical specifications: Measurement range: 0~100% Display range: 0.0 to 99,999.9 μg Measurement error: No more than ±3% of the total moisture content of the sample (when the moisture content exceeds 1mg) or not more than ±30μg (when the total moisture content is less than or equal to 1mg) Resolution: 0.1μg Working furnace temperature: Room temperature to 300°C Working conditions: Power supply: AC 220±22V, 50～60Hz DC: 10～45V (Only for use during drying) Ambient temperature: 5～40°C Carrier gas (nitrogen from cylinders): Moisture content <200 μL/L Flow rate: 70±20 mL/min Instrument dimensions: 475mm (W) × 220mm (H) × 280mm (D) Weight: approximately 9kg Working principle: This instrument operates based on the electrolysis principle. A sample of specified weight is heated to a set temperature, and the released moisture is carried by dry nitrogen gas to the electrolytic cell, where it is completely absorbed and electrolyzed. The water content in the sample is measured by integrating the electrical charge consumed during the electrolysis process. The electrolytic cell selectively and completely absorbs and electrolyzes the moisture carried by the carrier gas, ensuring that this instrument achieves higher accuracy than the classical gravimetric method for water measurement. Additionally, it offers advantages such as a wide measurement range, rapid response, simple operation, and low sample consumption. Users can also conveniently verify the measurement accuracy of the instrument with standard samples as needed. The UGI-1C Solid Moisture Analyzer is widely used for measuring the moisture content in solid materials such as chemical fibers, lithium battery manufacturing, pharmaceuticals, chemical preparations, molecular sieves, and mineral samples. It includes the determination of surface adsorbed water, internal absorbed water, and crystalline water. Additionally, this instrument can also be used to measure trace oxygen content in metal powders.
Introduction: The instrument employs the electrolytic measurement principle, featuring advantages such as a wide measurement range, high accuracy, low sample consumption, and simple operation. It is widely used for measuring the moisture content in solid materials like chemical fibers, plastics, pharmaceuticals, minerals, and crystalline hydrates.
