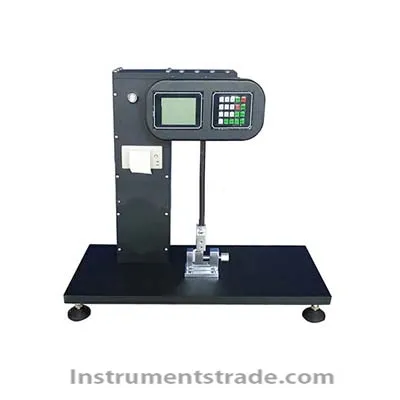

TY-8008 plastic pendulum strength impact testing machine

Product ID:HZXSjxxn006

Price: Please inquire PDF Format
Supply Ability:60SETS/MON
Port:SHENZHEN
share:
  • Product Introduction
  • Consulting
  • Model NumberTY-8008
    Brand NameYIMA
    Payment TermsT/T, paypal
    Introduction:
    Digital cantilever impact test machine is mainly used for hard plastic, reinforced nylon glass, ceramic, cast stone, electrical insulation materials and other non-metallic materials, the determination of impact toughness. With stable and reliable performance, high precision, easy to use and so on, can directly calculate the impact energy, save 60 historical data, 6 units change, two screen display, can display practical angle and angle peak or energy, is the chemical industry, scientific research units , Universities, quality inspection departments and laboratories and other specialized manufacturers ideal test equipment.
    Technical Parameters:
    Impact speed: 3.5m / s
    2. Pendulum energy: 2.75J, 5.5J, 11J, 22J
    3. Pendulum pre-Yang: 150 °
    4. Strike center distance: 0.335m
    5. Pendulum torque: T2.75 = 1.47372Nm T5.5 = 2.94744Nm
                 T11 = 5.8949Nm T22 = 11.7898Nm
    6. Impact blade to the jaw above the distance: 22mm ± 0.2mm
    7. Blade fillet radius: R (0.8 ± 0.2) mm
    8. Angle measurement accuracy: 0.2 degrees
    9. Energy Calculation:
       Sub-file: 4 files
       Method: Energy E = Potential - Loss
       Accuracy: 0.05% of indication
    10. Energy unit: J, kgmm, kgcm, kgm, lbft, lbin interchangeable
    11. Temperature: -10 ~ 40
    12. Power: AC220V 50Hz 0.2A

  • Introduction:
    Digital cantilever impact test machine is mainly used for hard plastic, reinforced nylon glass, ceramic, cast stone, electrical insulation materials and other non-metallic materials, the determination of impact toughness. With stable and reliable performance, high precision, easy to use and so on, can directly calculate the impact energy, save 60 historical data, 6 units change, two screen display, can display practical angle and angle peak or energy, is the chemical industry, scientific research units , Universities, quality inspection departments and laboratories and other specialized manufacturers ideal test equipment.
