TW200 Cyclone Mill

Product ID：SYFSymqm0057

Price: Please inquire PDF Format

Supply Ability:50 SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberTW200

Brand NameGERUIDEMAN

Payment TermsTT，PAYPAL，Alibaba.com Pay

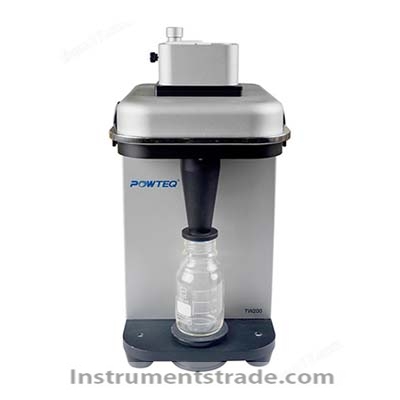

TW200 Cyclone Mill
Product Overview
The TW200 Cyclone Mill is specifically engineered for near-infrared (NIR) sample preparation in the food and feed industries. Its innovative rotor, grinding chamber, and sieve design ensures efficient milling while preventing sample overheating, maintaining the integrity of heat-sensitive materials.
Using advanced cyclone technology, the TW200 provides reliable, reproducible, and high-quality sample preparation, essential for accurate NIR analysis. It is ideal for agricultural, pharmaceutical, food, feed, and chemical applications, and can process fibrous, soft, dry, or low-fat samples (moisture ≤15%, fat ≤10%).
Typical samples include: grain tablets, cereals, corn, livestock feed (cow, horse), pharmaceuticals, legumes, tobacco, and similar materials.

Key Features

Adjustable Feed Rate
The mill is equipped with a funnel to regulate feed speed, enabling optimal milling of varying particle sizes.
High Power & Efficiency
The TW200 delivers strong horsepower for rapid, efficient grinding while minimizing sample residue.
No Cross-Contamination
All contact surfaces are easy to clean, ensuring sample purity between batches.
Durable Industrial Design
Constructed for long-term industrial use with professional-grade materials.
Variable Rotor Speed
Rotor speed can be adjusted (12000 / 14000 / 16000 RPM), accommodating different sample types and achieving consistent results.
Unique Grinding Chamber
Optimized design enhances grinding of grains and feed, producing fine particles suitable for NIR analysis.

Working Principle
The TW200 Cyclone Mill uses a high-speed rotor to accelerate sample particles into the grinding chamber, where they are pulverized by impact and shear forces. The cyclone airflow separates fine particles from coarse material, allowing precise control of particle size.
The combination of rotor speed, grinding chamber geometry, and sieving ensures uniform particle distribution and minimal heat generation, protecting heat-sensitive components of the sample.

Technical Specifications

Parameter	Specification
Feed Size	< 10 mm
Output Particle Size	< 250 μm
Rotor Speed	12000 / 14000 / 16000 RPM
Rotor Circumferential Velocity	61 / 71 / 82 m/s
Batch Feed Volume	< 250 mL
Rotor Diameter	98 mm
Rated Power	1.5 kW
Rated Voltage	220 V, 50/60 Hz

Applications
•Agriculture: Grain, feed analysis, tobacco, legumes
•Food Industry: Cereals, corn, snacks, low-fat products
•Pharmaceuticals: Tablets, medicinal powders
•Chemical Industry: Dry, fibrous, or soft chemical samples
•Feed Analysis: Cow, horse, and poultry feed NIR preparation

TW200 vs Conventional Sample Mills

Feature	TW200 Cyclone Mill	Conventional Mill
Sample Temperature	Minimal heat	Higher heat generation
Particle Size	< 250 μm	Less uniform
Cross-Contamination	None, easy to clean	Possible
Rotor Speed	Adjustable (12k–16k RPM)	Fixed or limited
Batch Size	Up to 250 mL	Smaller or less efficient
Application	Food, feed, pharma, chemical	Limited scope
Durability	Industrial design	Laboratory-only
Efficiency	High	Moderate

FAQ
Q1: Can TW200 mill samples with high fiber content?
A1: Yes, it is optimized for fibrous samples including grains, feed, and legumes.
Q2: What is the maximum batch volume?
A2: The maximum batch feed volume is 250 mL.
Q3: Can the mill handle low-fat or heat-sensitive samples?
A3: Yes, the special rotor and grinding chamber design prevent overheating and preserve sample integrity.
Q4: Is the output particle size consistent?
A4: Yes, the mill produces particles smaller than 250 μm with high reproducibility.
Q5: Can rotor speed be adjusted?
A5: Yes, speeds of 12000, 14000, or 16000 RPM are selectable depending on sample type.
Q6: Is the mill suitable for industrial use?
A6: Yes, it features a professional-grade industrial design for long-term operation.
Q7: How easy is it to clean?
A7: The mill is designed for minimal residue and easy cleaning to prevent cross-contamination.

FAQ
Q1: Can TW200 mill samples with high fiber content?
A1: Yes, it is optimized for fibrous samples including grains, feed, and legumes.
Q2: What is the maximum batch volume?
A2: The maximum batch feed volume is 250 mL.
Q3: Can the mill handle low-fat or heat-sensitive samples?
A3: Yes, the special rotor and grinding chamber design prevent overheating and preserve sample integrity.
Q4: Is the output particle size consistent?
A4: Yes, the mill produces particles smaller than 250 μm with high reproducibility.
Q5: Can rotor speed be adjusted?
A5: Yes, speeds of 12000, 14000, or 16000 RPM are selectable depending on sample type.
Q6: Is the mill suitable for industrial use?
A6: Yes, it features a professional-grade industrial design for long-term operation.
Q7: How easy is it to clean?
A7: The mill is designed for minimal residue and easy cleaning to prevent cross-contamination.
