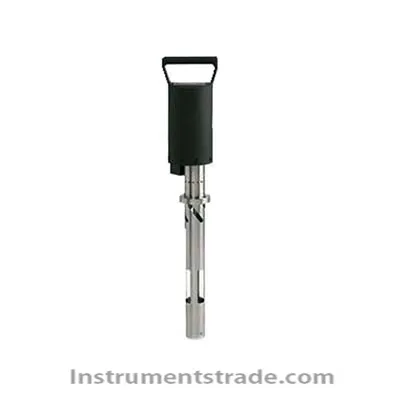

TT-220 online viscometer

Product ID:ZXND008

Price: Please inquire PDF Format
Supply Ability:50 SETS/MON
Port:SHENZHEN
share:
  • Product Introduction
  • Consulting
  • Model NumberTT-220
    Brand NameSHITONGKECHUANG
    Payment TermsT/T, paypal
    Introduction:
    The TT-220 Process Viscometer is intended for open tank applications (5-20 gallon, 20-75 liters) requiring constant viscosity monitoring and or control. The TT-220 is often used in coatings or printing applications. The TT220 is a rotational coaxial cylinder (Searle) viscometer providing true dynamic viscosity measurements at defined shear rates, from as low as 0.1 sec-1to as high as 600 sec-1.
    Features:
    LED displays indicate process viscosity vs. set point
    Optional RS485 computer interface
    Displays viscosity in cP, mPa·s, or orifice cup seconds
    Senses/responds continuously
    Control capability includes PID, auto-tune PID, or on/off
    User selectable high/low alarms
    Easy to start-up, operate, and clean
    Wetted parts are 300 series stainless steel
    Can measure at API-defined shear rate of 511 sec-1, or “LSRV” drilling mud shear rate of 0.15 sec-1
    Technical Parameters:
    Viscosity Range: 5 to 100,000 cP
    Accuracy: ±1% of full scale range
    Temperature Range: -40°C to 100°C
    Output: mechanical relay or 4-20 mA
    Input Voltage: 115 Vac, 230 Vac or 24 Vdc



  • Introduction:
    The TT-220 Process Viscometer is intended for open tank applications (5-20 gallon, 20-75 liters) requiring constant viscosity monitoring and or control. The TT-220 is often used in coatings or printing applications. The TT220 is a rotational coaxial cylinder (Searle) viscometer providing true dynamic viscosity measurements at defined shear rates, from as low as 0.1 sec-1to as high as 600 sec-1.
