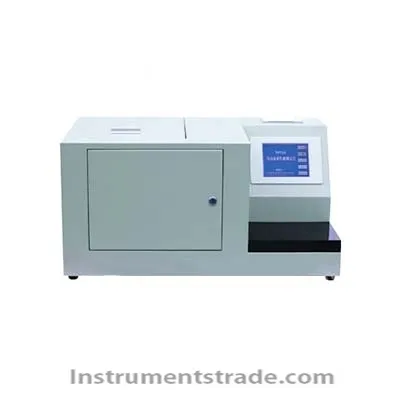

TP756 automatic water-soluble acid analyzer

Product ID:HZSYqtOther051

Price: Please inquire PDF Format
Supply Ability:60 SETS/MON
Port:SHENZHEN
share:
  • Product Introduction
  • Consulting
  • Model NumberTP756
    Brand NameBEIJINGSHIDAIXINWEI
    Payment TermsT/T, paypal
    TP756 automatic water-soluble acid analyzer
    Introduction
    TP756 is designed and produced in accordance with GB / T7598 "Determination of Water-Soluble Acids of Transformer Oil and Turbine Oils in Operation (Colorimetric Method)", and is specially used for the determination of water-soluble acids (pH) of transformer oil, steam turbine oil, and oil-resistant petroleum products.

    Feature
    Integrated design, single-chip control.
    The instrument has a high degree of automation.
    LCD display, Chinese menu, easy to operate.
    Automatically complete heating, shaking, standing, oil-water separation, color development, color comparison, display and print the measurement results.

    Technical Parameters
    Measuring range: pH3.8 ~ 7.0
    Measurement error: ≤ ± 0.05 pH
    Resolution: 0.01pH
    Repeatability: ≤1%
    Applicable temperature: 5 ℃ ~ 40 ℃
    Applicable humidity: ≤85%
    Power supply voltage AC: AC 220V ± 10% 50Hz ± 10%
    Power: ≤ 500W
    Dimensions: 680mm × 420mm × 345mm

  • TP756 automatic water-soluble acid tester is designed and produced according to GB / T7598 "Determination of water-soluble acid of transformer oil turbine oil during operation (colorimetric method)". TP756 automatic water-soluble acid tester is specially used for the determination of water-soluble acids (pH) in transformer oil, turbine oil, fuel oil and other petroleum products.
