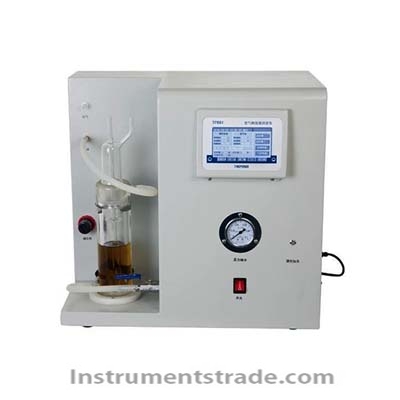

TP661 Air Release Value Tester
Product Introduction
The TP661 Air Release Value Tester is designed according to SH/T 0308-92, Test Method for Air Release Value of Lubricating Oils, and is used to determine the air release value of hydraulic oils, turbine oils and other petroleum products.
The petroleum products air release value tester integrates air and water bath temperature control with air pressure control. It uses computer-based dual-channel temperature control and PID temperature regulation to provide stable and accurate testing conditions. The TP661 is suitable for quality control, product evaluation and research in the petroleum, chemical and power industries.

Performance Features
• SH/T 0308-92 compliant: Designed for air release value testing according to the specified test method.
• Dual-temperature control: Simultaneously and precisely controls air and water temperatures.
• Integrated control system: Combines air temperature, water bath temperature and air pressure control.
• PID temperature control: Provides accurate and stable temperature regulation.
• Oil-free silent pump: Produces a stable airflow with low operating noise.
• Stable and reliable performance: Provides accurate results and good repeatability.
• Automatic liquid-level detection: Helps prevent instrument damage caused by insufficient water level.
• LCD display: Provides convenient observation of test parameters and operating status.

Working Principle
The TP661 air release value tester operates according to SH/T 0308-92. During the test, air is introduced into the petroleum product sample under specified temperature and pressure conditions. Air bubbles dispersed in the oil gradually escape from the sample.
The instrument precisely controls the air temperature, water bath temperature and air pressure to establish stable test conditions. After the specified test process, the time required for the entrained air to be released is evaluated according to the applicable test method, providing the air release value of the tested oil.
The combination of PID temperature control, stable airflow and accurate pressure adjustment helps improve test repeatability and measurement reliability.

Technical Parameters

Parameter	Specification
Temperature Control Range	Room temperature–99.9°C
Water Bath Temperature Control Accuracy	≤±1°C
Air Temperature Control Accuracy	≤±5°C
Pressure Adjustment Range	0–98 kPa
Ambient Temperature	5–40°C
Display	LCD
Ambient Humidity	≤85% RH
Power Supply	AC 220 V ±10%, 50 Hz ±10%
Power Consumption	≤1100 W
Dimensions	560 × 350 × 490 mm
Weight	23 kg

Applications
The TP661 hydraulic oil air release value tester is suitable for:
• Hydraulic oil testing
• Turbine oil testing
• Lubricating oil quality evaluation
• Petroleum product analysis
• Oil performance research and development
• Petroleum laboratories
• Chemical industry laboratories
• Power plant and power industry laboratories
• Quality control and inspection laboratories
It is particularly useful where the air release characteristics of hydraulic oils, turbine oils and other lubricating oils need to be evaluated.

TP661 vs. Conventional Air Release Value Testing Equipment

Feature	TP661 Air Release Value Tester	Conventional Testing Equipment
Applicable Standard	SH/T 0308-92	Depends on equipment
Temperature Control	Dual-channel control	May require separate control
Temperature Regulation	PID control	Basic/manual control on some models
Air Pressure Control	0–98 kPa	Varies
Airflow System	Oil-free silent pump	Conventional pump
Water Bath Control	Integrated	May require separate equipment
Air Temperature Control	Integrated	May require additional equipment
Liquid-Level Protection	Automatic detection	Not always available
Operation	Integrated control	More manual operation
Applications	Hydraulic oil, turbine oil and petroleum products	Depends on configuration

Why Choose the TP661?
The TP661 Air Release Value Tester provides an integrated solution for petroleum product air release testing. By combining dual-channel temperature control, PID regulation, stable airflow, adjustable air pressure and automatic liquid-level protection, the instrument simplifies the testing process while improving temperature stability, repeatability and operational reliability.
Designed according to SH/T 0308-92, it is an effective laboratory instrument for evaluating the air release characteristics of hydraulic oils, turbine oils and other lubricating oil products.

Frequently Asked Questions (FAQ)
1. What is the TP661 Air Release Value Tester used for?
It is used to determine the air release value of hydraulic oils, turbine oils, lubricating oils and other petroleum products.
2. Which standard does the TP661 follow?
The instrument is designed according to SH/T 0308-92, Test Method for Air Release Value of Lubricating Oils.
3. Can the TP661 test hydraulic oil?
Yes. The TP661 is specifically suitable for hydraulic oil air release value testing.
4. Can it test turbine oil?
Yes. It can be used to determine the air release characteristics of turbine oils and other petroleum products.
5. What is the temperature control range?
The temperature control range is room temperature to 99.9°C.
6. What is the pressure adjustment range?
The air pressure adjustment range is 0–98 kPa.
7. Does the instrument have automatic water-level protection?
Yes. The TP661 has an automatic liquid-level detection function to help prevent damage caused by insufficient water level.
8. What temperature control technology is used?
The instrument uses PID temperature control and computer-controlled dual-channel temperature regulation for improved accuracy and stability.
