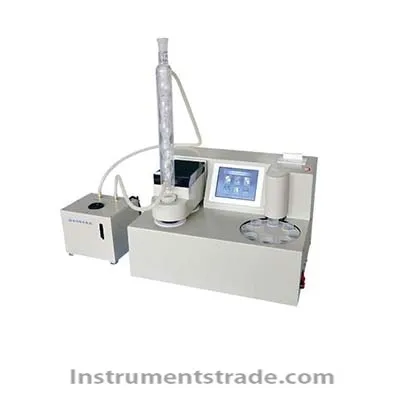

TP5321 automatic acid value tester Introduction
TP5321 acid value tester, according to the urgent requirements of the market, is completely designed and developed in accordance with the GB / T 28552-2012 standard, which is the first in China. It is a fully automatic measuring instrument that can accurately detect the acid value of transformer oil, fuel resistance and turbine oil. While improving the working efficiency and test accuracy, the instrument reduces the operator's exposure to samples and reagents, ensuring maximum personal safety. Features
The sample weight does not need to be manually weighed, the instrument is equipped with a high-precision weighing balance, and the sample weight can be obtained with a simple operation.
When the sample cup is placed on the cup, the instrument will automatically perform operations such as heating and refluxing, measuring, and displaying the results.
During the measurement, the instrument automatically deducts the ethanol background value and the indicator background value, and the result is more accurate.
The instrument is provided with a standard acid and calibration program for the calibration instrument. The user can calibrate the instrument and the neutralizing solution at any time, which overcomes the defect of concentration changes in the use of the neutralizing solution and improves the reliability of test results.
One sample can be measured at one time, which is convenient to use. Technical Parameters
Accuracy:
Acid value between 0.001-0.100 mg KOH / g, ≤ ± 0.001mg KOH / g
Acid value between 1.000-4.000 mg KOH / g, ≤ ± 0.01mg KOH / g
Repeatability:
Acid value between 0.001-0.100 mg KOH / g, <0.002 mgKOH / g
Acid value between 1.000-4.000 mg KOH / g, <0.02 mgKOH / g
Applicable to GB / T 28552-2012 transformer oil and turbine oil acid value determination method (BTB method) standard.
Test range: 0.001 ～ 4mg KOH / g
Resolution: 0.001mg KOH / g
Applicable temperature: 10 ℃ ～ 45 ℃
Applicable humidity: ≤85% RH
Power source: AC 220V ± 10% 50Hz ± 10%
Power: ≤500W
Dimensions: 680mm × 420mm × 345mm
