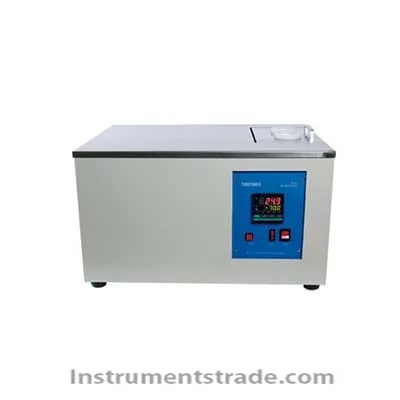

TP426 freezing point pour point tester Introduction
TP426 Pour Point Detector is in accordance with GB / T 510, ASTM D2386, GB / T 3535, ASTM D97. TP426 freezing point pour point tester is suitable for measuring the freezing point and pour point of petroleum products.
Feature
Imported compressor refrigeration system to ensure the required refrigeration depth
Built-in powerful cooling fan, no circulating water required. Easy to operate
Automatically control the temperature difference between the cooling medium and the test sample to ensure that the cooling rate is controlled and uniform and stable
Internal precision microcomputer timing to ensure the accuracy of judgment results
Technical Parameters
Temperature range: -70 ～ 50 ℃
Resolution: 0.1 ℃
Refrigeration method: compressor refrigeration (France DANFOS)
Working cold tank: single bath two bath, two bath isothermal
Counting time: 60.0s division 0.1s
Temperature measuring element: PT100 (Temperature sensor from JUMO, Germany)
Relative humidity: ≤85%
Ambient temperature: 5 ℃ ～ 40 ℃
Power consumption: ≤900W
Power supply voltage: AC 220V ± 10% 50Hz ± 10%
Dimension: 600mm × 450mm × 450mm
Instrument weight: 50kg
TP426 Pour Point Detector is in accordance with GB / T 510, ASTM D2386, GB / T 3535, ASTM D97. TP426 freezing point pour point tester is suitable for measuring the freezing point and pour point of petroleum products.
