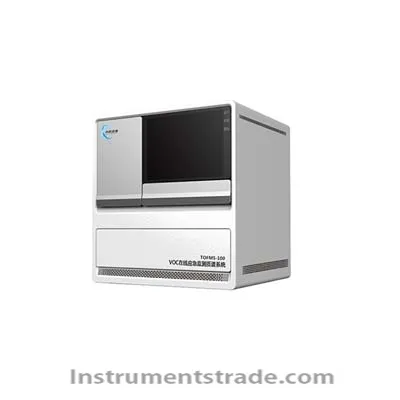

TOFMS-100 VOC online emergency monitoring mass spectrometry system Introduction
VOCs online emergency monitoring mass spectrometry system can monitor volatile organic compounds (VOCs) in the atmosphere in real time, online and in situ, and accurately and quantitatively analyze volatile organic compounds. Features
The TOF-MS principle is adopted, featuring high time resolution and monitoring accuracy.
It can process and count the trend of the concentration of the monitored substances in real time, and display and save the data.
Safely shut down yourself when an incident occurs and record the event and when it occurred.
It can be applied to mobile navigation vehicles to meet fast and accurate emergency monitoring and analysis requirements.
With automatic fault diagnosis.
The spatial distribution of the monitoring factors can be obtained by combining GIS map information. Technical Parameters
Quality range: 1-400 amu
Linear range: 3 orders of magnitude
Response time: 10s
Repeatability: <5%
Weight: about 150kg
Size: 840mm*530mm*1350mm
Introduction
VOCs online emergency monitoring mass spectrometry system can monitor volatile organic compounds (VOCs) in the atmosphere in real time, online and in situ, and accurately and quantitatively analyze volatile organic compounds.
