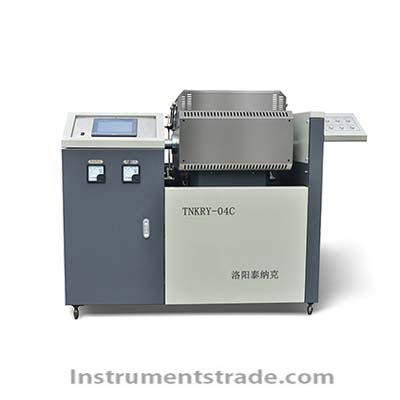

TNKRY-04 type sample melting machine Introduction: The TNKRY-04C sample fusion machine is an upgraded version of the old model, specifically designed for X-ray fluorescence spectroscopy analysis. After undergoing long-term market testing and improvements, its technical performance and reliability have reached the industry-leading level, making it a trusted supporting product for X-ray fluorescence users such as Thermo Electron, Bruker, Rigaku, PANalytical, Shimadzu, Tianrui, Shanghai Jingpu, Sichuan Xinxian Da, and Wuxi Chuangxiang. Features: 1. High work reliability 2. The melting effect has good repeatability 3. Suitable for melting samples at different temperatures for various materials 4. Equipped with multiple protection functions 5. Crucible air cooling device 6. Add a pre-oxidation function to simplify sample melting 7. The heating element significantly enhances the efficiency of equipment temperature rise 8. The new type of furnace chamber extends the lifespan of the furnace chamber 9. One-stop training service and after-sales service Technical Specifications: Automatic control system: touch screen human-machine interface + AI intelligent temperature control system + PLC program control Heating rate: average 45℃/min Rated temperature: 0~1250℃ (up to 1300℃) Heating element: silicon carbide rod Temperature control accuracy: ±1℃ (S-type dual platinum-rhodium thermocouple temperature control) Number of samples melted: 4 (one-time molding) Furnace body swing angle: adjustable from 0 to 40° Rotation speed of the bracket: adjustable from 0 to 30 r/min (stepless speed regulation via frequency converter, capable of rotating in both forward and reverse directions) Operating curves: 9 operating curves are available Instrument weight: Total equipment weight is 380kg Equipment power: 8kw Sample melting method: Rotation combined with forward and backward oscillation (to induce vortex motion in the sample, ensuring excellent homogeneity and effective de-aeration). Sample melting method: There are two sample melting methods. Automatic operation mode 1 is the general normal sample melting method. Automatic operation mode 2 allows the addition of other materials (such as mold release agents) during the sample melting process according to specific sample melting techniques. Protection functions: Equipped with protection functions such as overload, disconnection, and overtemperature alarms. Power supply requirements: AC three-phase four-wire system, and a grounding protection system with a grounding resistance of less than or equal to 4 ohms is required. Equipment appearance dimensions: length 1380mm × width 685mm × height 1150mm Packaging dimensions: Length 1560mm × Width 980mm × Height 1400mm
TNKRY-04 type sample melting machine Introduction: The TNKRY-04C sample fusion machine is an upgraded version of the old model, specifically designed for X-ray fluorescence spectroscopy analysis. After undergoing long-term market testing and improvements, its technical performance and reliability have reached the industry-leading level, making it a trusted supporting product for X-ray fluorescence users such as Thermo Electron, Bruker, Rigaku, PANalytical, Shimadzu, Tianrui, Shanghai Jingpu, Sichuan Xinxian Da, and Wuxi Chuangxiang.
