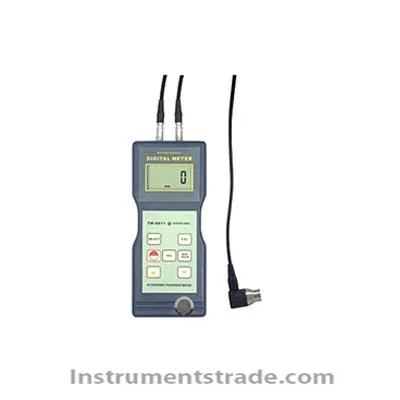

Introduction: TM-8811 Basic Ultrasonic Thickness Gauge Application: Thickness measurement and corrosion measurement of petroleum, shipbuilding, power station, machinery manufacturing and pressure vessels, chemical equipment boilers, oil storage tanks, etc. It can measure the thickness of any hard material, such as: steel, cast steel, aluminum, copper, brass, zinc, quartz glass, polyethylene, polyvinyl chloride, gray cast iron, ductile iron, ceramics, plastics and any other ultrasonic conductors. Features: 1. Adopt the latest high-performance, low-power microprocessor technology. 2. Two-way measurement, for materials within the measurement range, the thickness can be measured with a known sound velocity, and the sound velocity can be measured with a known thickness. 3. Automatically memorize material code and sound speed value, easy to use. 4. It has the function of coupling status prompt. 5. Automatic shutdown, manual shutdown function. Technical parameter: Display: 4-digit 10mm LCD screen Sensor: Ultrasonic Measuring range: 1.5mm~200mm/0.06inch~8inch Resolution: 0.1mm Measurement accuracy: ±(0.5%n+0.2mm) The lower limit of pipe measurement: Φ15mmx2.0mm, Φ20mmx3.0mm determined by the probe Working environment: Temperature: 0ºC~40ºC Humidity: <85%RH Power supply: 4 AA batteries Dimensions: 160mmx68mmx32mm Weight (without battery): 208g
Introduction: TM-8811 Basic Ultrasonic Thickness Gauge Application: Thickness measurement and corrosion measurement of petroleum, shipbuilding, power station, machinery manufacturing and pressure vessels, chemical equipment boilers, oil storage tanks, etc. It can measure the thickness of any hard material, such as: steel, cast steel, aluminum, copper, brass, zinc, quartz glass, polyethylene, polyvinyl chloride, gray cast iron, ductile iron, ceramics, plastics and any other ultrasonic conductors.
