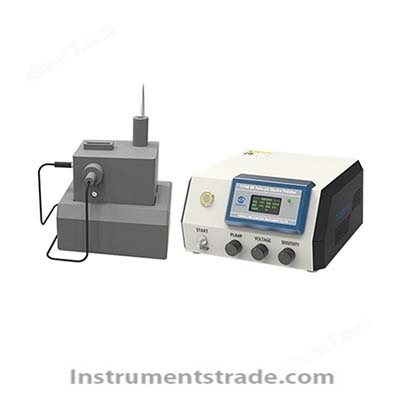

TJ100-BE Electrolytic Double Spray Instrument characteristic: 1. Using liquid nitrogen refrigeration method, the control box and electrolytic cell are separated for control, polishing, and automatic alarm and shutdown for hole breaking; 2. Polishing voltage, current value LCD display, polishing voltage, sensitivity value and flow rate knob adjustable; 3. Magnetic surge jet polishing, imported PVC material integral molding processing, no leakage risk; 4. Optional electrolytic polishing nozzle and clip upgrade electrolytic polishing function to meet EBSD sample preparation requirements. Technical parameters: Power input: AC220V/50Hz, 100W Electrolysis voltage: 0-110V, electrolysis current: 1-1000mA Liquid nitrogen cooling temperature control: ≥ -45 ℃ Electrolyte injection volume: 130mL Electrolytic cell size: 128mm (W) * 106mm (D) * 84mm (H) Motor box size: 180mm (W) * 140mm (D) * 81mm (H) Control box size: 255mm (W) * 360mm (D) * 100mm (H) Standard configuration: One electrical control box Φ 3mm standard sample clamp One aviation plug and one power cord
characteristic: 1. Using liquid nitrogen refrigeration method, the control box and electrolytic cell are separated for control, polishing, and automatic alarm and shutdown for hole breaking; 2. Polishing voltage, current value LCD display, polishing voltage, sensitivity value and flow rate knob adjustable; 3. Magnetic surge jet polishing, imported PVC material integral molding processing, no leakage risk; 4. Optional electrolytic polishing nozzle and clip upgrade electrolytic polishing function to meet EBSD sample preparation requirements.
