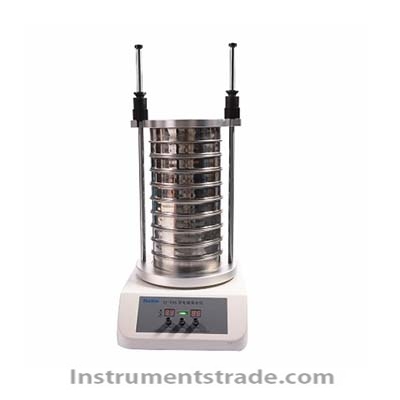

TJ-TAS electromagnetic vibration screening instrument

Product ID：WLsf033

Price: Please inquire PDF Format

Supply Ability:50 SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberTJ-TAS

Brand NameTJDONGFANGTIANJING

Payment TermsTT，PAYPAL，Alibaba.com Pay

TJ-TAS electromagnetic vibration screening instrument
Introduction:
TJ-TAS electromagnetic vibration screening instrument is a laboratory three-dimensional vibration screening instrument developed and produced by Dongfang Tianjing, which uses electromagnetic force as the driving force. It is easy to operate and can greatly reduce the labor intensity of laboratory operators and improve labor efficiency.
The TJ-TAS electromagnetic vibration screening instrument uses the electromagnetic force generated by 220V AC power as the driving force, and is equipped with an electromagnetic coil at the bottom for charging and discharging, which drives the sieve to vibrate. The sample to be screened is thrown in three dimensions on the surface of the sieve to achieve uniform screening effect. The TJ-TAS electromagnetic screening instrument can place up to 10 layers of standard sieves from top to bottom, arranged in descending order of pore size, and can simultaneously obtain samples of different particle sizes. The amplitude and vibration frequency of the screening instrument can be electronically controlled and adjusted, making it easy to operate. It is also equipped with a screening ball, which increases the vibration of the sieve mesh with the kinetic energy of the ball, reducing the occurrence of sample clogging of the sieve holes.
Characteristics:
1. Driven by electromagnetic force, energy is clean and environmentally friendly;
2. The instrument performs three-dimensional throwing screening, and the sample material is evenly dispersed;
3. The machine power and amplitude can be adjusted, and the noise is low;
4. The "S" - shaped unidirectional pressure plate design allows for quick loading and unloading of the screen mesh;
5. Three vibration modes are available: "continuous", "fine", and "intermittent" to meet different needs;
6. Can handle dry grinding and wet grinding samples separately;
7. It can be equipped with a 10 level standard sieve to obtain samples of different particle sizes;
8. It can be equipped with standard sieves of different materials with a diameter of less than 200mm.
Technical parameters:

model	TJ-TAS
load	3kg
Available sieve diameter	100mm、200mm
screen number	Level 10 (excluding collection tray and top cover)
Scope of use	Fine screening: 20 μ m~3 μ m (750 mesh~5000 mesh); Conventional sieve: 20 μ m~60mm (perforated soil sieve)
Vibration frequency	Normal mode 0~3000 times/minute, fine mode 0~6000 times/minute, adjustable
amplitude selection	0-3mm continuous adjustment
Vibration mode	Fine vibration, intermittent vibration, continuous vibration
control mode	Manual control and timed control
Dismantling method	S-shaped pressure plate, one-way quick clamp fastening device
time display	Digital mode (1~99min)
Intermittent time	Digital mode (1~99min)
Instrument weight	20KG
outline dimension	Host 320 * 400 * 160mm; pole length 570mm
power supply	AC 220V±25V，50Hz±1Hz
