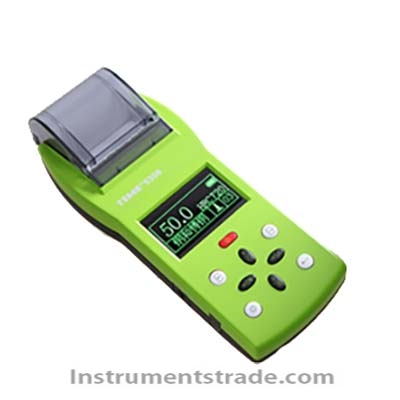

TIME5306 Leeb Hardness Tester Introduction: The TIME5306 Leeb hardness tester is a new type of portable hardness testing instrument, primarily suitable for testing the hardness of metallic materials. It features high testing accuracy, compact size, easy operation, convenient portability, and a wide measurement range. The Leeb hardness tester is designed based on the Leeb (Dietmar Leeb) hardness testing principle. The measured Leeb hardness value is automatically converted into Brinell, Rockwell, Vickers, Shore, and other hardness values through a program. It can also be equipped with various testing accessories to meet various testing conditions and environments. It is primarily suitable for rapid hardness testing of metallic materials, especially for on-site hardness testing of large components and non-detachable parts. Features: 1. It features a custom material function, allowing users to establish their own unique hardness conversion relationship through hardness comparison tests 2. Make the hardness conversion results more accurate, or add exclusive materials 3. Equipped with built-in conversion tables for both national standard hardness and export standards, allowing for seamless switching and catering to various usage scenarios 4. Integrated thermal printer, capable of printing any number of test results, meeting on-site needs 5. 2.42-inch large-screen OLED display, 128×64 graphic dot matrix, high brightness, high contrast, clear and eye-catching information display 6. The host computer software can be equipped through the USB interface, and the measurement data can be transmitted to the host computer in Word or Excel format 7. During measurement, both Leeb hardness and the required converted hardness can be displayed simultaneously, and real-time data can also be printed out through a thermal printer Technical Specifications: Hardness scales: Leeb, Brinell, Rockwell B, Rockwell C, Vickers, Shore Measuring range: HLD (170~960) HLD Measurement direction: 360° Relative error ±0.8%, indication repeatability error 0.8 (HLD=800) (indication error and repeatability table) Standard impact device: D-type impact device (test range table) Measure the radius of curvature of the workpiece: Rmin=50mm (using a special-shaped support ring with Rmin=10mm) The maximum hardness value of the measured workpiece is 940HV (D/DC/DL/D+15/C impact device) Optional impact devices: D/C/DC/D+15/DL/G Display: 2.42-inch OLED display, 128×64 graphic dot matrix Data storage: 1000 sets Upper and lower limit setting range: same as measurement range Print paper width: 57.5±0.5mm Print paper roll diameter: 40mm (thermal print paper) Print speed: 0.27~17.36mm/sec Print resolution: 8 dots/mm Operating voltage: 3.7V Charging time: approximately 3 hours Charging power supply: 5V/1A Communication interface standard: USB2.0 Overall dimensions: (230×90×46.5) mm Weight: approximately 0.35kg (main unit)
TIME5306 Leeb Hardness Tester Introduction: The TIME5306 Leeb hardness tester is a new type of portable hardness testing instrument, primarily suitable for testing the hardness of metallic materials. It features high testing accuracy, compact size, easy operation, convenient portability, and a wide measurement range. The Leeb hardness tester is designed based on the Leeb (Dietmar Leeb) hardness testing principle. The measured Leeb hardness value is automatically converted into Brinell, Rockwell, Vickers, Shore, and other hardness values through a program. It can also be equipped with various testing accessories to meet various testing conditions and environments. It is primarily suitable for rapid hardness testing of metallic materials, especially for on-site hardness testing of large components and non-detachable parts.
