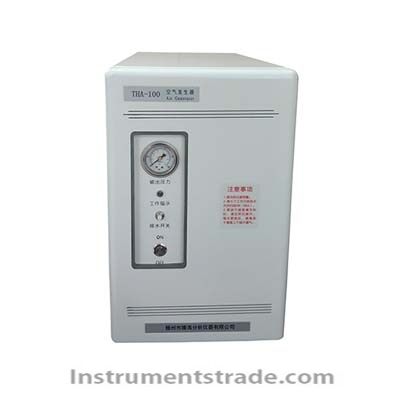

THA-100 Air Generator

Product ID：SYQFCkq005

Price: Please inquire PDF Format

Supply Ability:50SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberTHA-100

Brand NameSDTENGHAI

Payment TermsTT，PAYPAL，Alibaba.com Pay

THA-100 Air Generator

Product Introduction
The THA-100 Air Generator is designed to provide a stable supply of purified air for laboratory instruments. It offers a practical alternative to conventional high-pressure air cylinders, helping simplify laboratory gas supply and reduce dependence on cylinder replacement.
Featuring two-stage pressure stabilization, three-stage purification, and a stainless steel gas storage tank, the THA-100 provides air output of up to 5 L/min. Its simple operation, low noise, and built-in overpressure protection make it suitable for routine laboratory use, particularly as an air supply for gas chromatographs and compatible nitrogen generators.

Performance Features
• Cylinder Alternative: Provides on-site air generation for compatible laboratory instruments.
• Simple Operation: Start gas generation using the power switch.
• Stable Output: Two-stage pressure stabilization helps maintain consistent output pressure.
• Three-Stage Purification: Oil-free air purification supports laboratory gas supply requirements.
• Stainless Steel Storage Tank: Helps prevent rust contamination associated with conventional carbon steel tanks.
• Dual Pressure Outputs: Provides two output pressure ranges for different instrument requirements.
• Overpressure Protection: Built-in protection helps support safe operation.
• Convenient Drainage: A drainage switch facilitates routine condensate removal.
• Low Noise: Operating noise is specified at ≤42 dB.
• Compact Laboratory Design: Integrates air generation, storage, pressure control, and purification in one unit.

Working Principle
The THA-100 generates air and delivers it through an integrated pressure-control and purification system. The air passes through three purification stages to help remove oil and other contaminants before reaching the connected instrument.
A two-stage pressure stabilization system helps maintain stable output. The stainless steel storage tank stores the generated air, while the overpressure protection and drainage functions support reliable routine operation.
The two output pressure ranges allow the unit to serve different applications, including direct air supply to compatible gas chromatographs or air input to a compatible nitrogen generator.

Technical Specifications

Parameter	Specification
Model	THA-100
Product Type	Air Generator
Air Purification	Three-stage, oil-free purification
Output Flow Rate	0–5 L/min
Output Pressure A	0–0.4 MPa; generally for gas chromatographs
Output Pressure B	0–0.5 MPa; generally for the air inlet of a nitrogen generator
Pressure Stabilization	Two-stage
Storage Tank	Stainless steel
Operating Noise	≤42 dB
Power Supply	220 V, 50 Hz
Rated Power	180 W
Ambient Temperature	15–40°C
Relative Humidity	≤70%
Operating Environment	Avoid heavy dust and corrosive gas contamination
Dimensions (L × W × H)	490 × 240 × 380 mm
Weight	24 kg

Application Scenarios
The THA-100 air generator is suitable for:
• Gas chromatography laboratories
• Laboratory analytical instruments requiring purified air
• Air supply for compatible nitrogen generators
• Pharmaceutical quality control laboratories
• Environmental testing laboratories
• Chemical analysis laboratories
• Industrial quality inspection
• Research and development facilities

Comparison with Conventional High-Pressure Air Cylinders

Feature	THA-100 Air Generator	Conventional High-Pressure Air Cylinder
Air Supply	On-site generation	Stored compressed air
Operation	Power-switch startup	Cylinder and regulator operation
Pressure Control	Two-stage stabilization	Depends on regulator configuration
Air Purification	Three-stage, oil-free	Depends on external purification
Storage Tank	Stainless steel	Cylinder construction varies
Overpressure Protection	Built-in	Depends on connected equipment
Routine Handling	Requires routine instrument maintenance	Requires cylinder replacement or refilling
Operating Noise	≤42 dB	Generally low during static use
Laboratory Integration	Designed for instrument air supply	Requires suitable cylinder setup and connections

FAQ
1. What is the THA-100 Air Generator used for?
It supplies purified air to compatible laboratory instruments, including gas chromatographs and nitrogen generators.
2. What is the maximum output flow rate?
The specified output flow rate is up to 5 L/min.
3. What are the two output pressure ranges?
Output A is 0–0.4 MPa, generally for gas chromatographs. Output B is 0–0.5 MPa, generally for the air inlet of a nitrogen generator.
4. Does the THA-100 provide oil-free air?
Yes. It uses a three-stage oil-free purification system.
5. Why does the generator use a stainless steel storage tank?
The stainless steel tank helps avoid rust-water contamination associated with ordinary carbon steel storage tanks.
6. How does the THA-100 stabilize output pressure?
It uses a two-stage pressure stabilization system to help maintain stable output pressure.
7. Does the unit include safety features?
Yes. It includes overpressure protection and a drainage switch.
8. How noisy is the THA-100?
The specified operating noise is ≤42 dB.
9. What are the power requirements?
The THA-100 operates on 220 V, 50 Hz, with a rated power of 180 W.
10. What environmental conditions are recommended?
The specified ambient temperature is 15–40°C, relative humidity is ≤70%, and the installation environment should be free from heavy dust and corrosive gas contamination.
