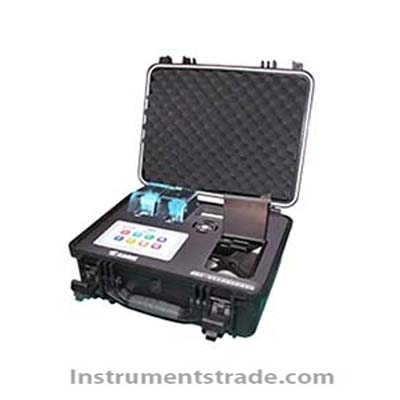

TE-703Plus (COD) Integrated Portable Water Quality Testing System

Product ID:HSYJcodc054

US$0.00 ~ US$1.00 PDF Format
Supply Ability:50 SETS/MON
Port:SHENZHEN
share:
  • Product Introduction
  • Consulting
  • Model NumberTE-703Plus
    Brand NameTIANERFENXI
    Payment TermsTT,PAYPAL
    TE-703Plus (COD) Integrated Portable Water Quality Testing System

    Introduction:
    TE-703Plus COD integrated portable water quality multi-parameter detection system adopts the integrated design of high-strength waterproof portable safety box, 1 360° automatic rotating cuvette detection system, 2 automatic cuvette detection structures, and can detect two at the same time. Water samples with the same pollutants, dual temperature zone digestion module, digital integrated system, color LCD touch screen, optical fiber detection technology, imported light source, professional water quality detector system, built-in high-capacity lithium battery, stable performance, accurate measurement, and wide measurement range , Powerful function, simple operation, meet the national standard "HJT399-2007 Determination of water chemical oxygen demand rapid digestion spectrophotometry" testing requirements.
    Scope of application: It is suitable for the detection of various water pollutants in domestic sewage, industrial wastewater, groundwater, reclaimed water and surface water. It is used in water quality testing laboratories, municipalities, sewage treatment plants, environmental monitoring stations, education and scientific research universities, power plants, disease Control center, papermaking and electroplating, aquaculture and biopharmaceutical, petrochemical, coal, metallurgy, textile, pharmaceutical, food and other industries
    Technical parameter:
    Dual colorimetric detection system: 1 360° automatic rotating cuvette detection system, 2 automatic cuvette detection structures, can detect two water samples with the same contaminant at the same time
    Battery: Built-in high-capacity lithium battery 40000mAh
    Optical inspection system: fiber inspection system
    Display: 7-inch color LCD touch screen
    Auto-calibration: The instrument has an auto-calibration function
    Self-check: The instrument has automatic detection, error alarm function
    Light source: imported cold light source (up to 100,000 hours or more)
    Detection accuracy: ≤±5%
    Wavelength range: 420nm, 610nm
    Wavelength accuracy: ±1nm
    Half-width of wavelength: 4nm
    Resolution: 0.001
    Repeatability: ≤±2%
    Storage: 1 million sets of data can be stored, which can be freely called and viewed
    Measurement items: COD,
    Measuring range: COD (5-10000mg/L),
    Pre-stored curves: 100 standard curves and 50 fitting curves are pre-stored, and curves can be modified and added
     Dual-temperature zone digestion: 8-well multi-functional digestion in dual-temperature zone
    Digestion temperature range: 0-200
    The digestion module has double insurance high temperature overload protection
    Dedicated water quality digestion system, solidifies conventional digestion items, one-button operation for digestion, and automatic alarm prompts when digestion is completed
    Printing method: standard built-in thermal printer
    Data transmission: equipped with USB interface and serial transmission function, optional Bluetooth interface
  • Introduction:
    TE-703Plus COD integrated portable water quality multi-parameter detection system adopts the integrated design of high-strength waterproof portable safety box, 1 360° automatic rotating cuvette detection system, 2 automatic cuvette detection structures, and can detect two at the same time. Water samples with the same pollutants, dual temperature zone digestion module, digital integrated system, color LCD touch screen, optical fiber detection technology, imported light source, professional water quality detector system, built-in high-capacity lithium battery, stable performance, accurate measurement, and wide measurement range , Powerful function, simple operation, meet the national standard "HJT399-2007 Determination of water chemical oxygen demand rapid digestion spectrophotometry" testing requirements.
    Scope of application: It is suitable for the detection of various water pollutants in domestic sewage, industrial wastewater, groundwater, reclaimed water and surface water. It is used in water quality testing laboratories, municipalities, sewage treatment plants, environmental monitoring stations, education and scientific research universities, power plants, disease Control center, papermaking and electroplating, aquaculture and biopharmaceutical, petrochemical, coal, metallurgy, textile, pharmaceutical, food and other industries
