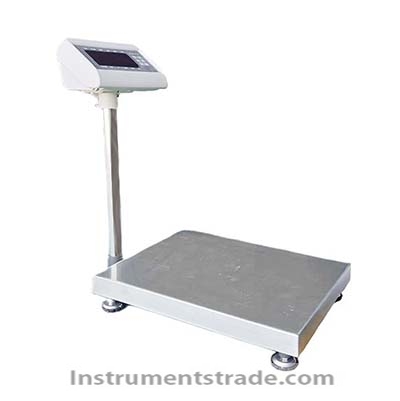

TCS Series Electronic Platform Scales Introduction: The TCS series platform scale features a fully welded square tube weighing body, a 304 stainless steel platform, OIML C3 load cells, and a high-precision weighing instrument. It is suitable for high-precision weighing and batching with small ranges in laboratory and production settings. Features: The weighing body is equipped with a level adjustment device, and the height of the support feet is adjustable. 2. The tape measure and range can be customized. 3. Optional sensors and instruments with IP68 rating can be configured to form a washable weighing body. 4. Optional explosion-proof intrinsic safety sensors and explosion-proof intrinsic safety weighing instruments are available. 5. Instruments with analog signal output or industrial fieldbus communication interfaces are available as optional accessories for integration with PLC/DCS systems. Technical Specifications: Precision grade: 1/3000, 1/6000 Measurement range: 60kg to 600kg Scale body structure: Fully welded square tube, single sensor support Weighing platform material: Stainless steel / Carbon steel with powder coating Table material: stainless steel Operating temperature: -10°C to +40°C Protection Class: (Optional) IP68 Explosion-proof rating: (Optional) Ex ia IIC T4
TCS Series Electronic Platform Scales Introduction: The TCS series platform scale features a fully welded square tube weighing body, a 304 stainless steel platform, OIML C3 load cells, and a high-precision weighing instrument. It is suitable for high-precision weighing and batching with small ranges in laboratory and production settings.
