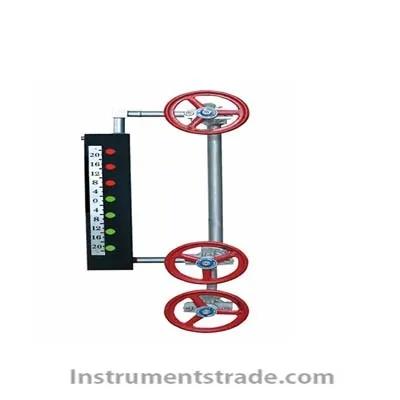

TC-MW16-7ⅢB type bull eye dual color water level gauge

Product ID:CLQTswj033

Price: Please inquire PDF Format
Supply Ability:50 SETS/MON
Port:SHENZHEN
share:
  • Product Introduction
  • Consulting
  • Model NumberTC-MW16-7ⅢB
    Brand NameTIELINGTIEGUANG
    Payment TermsTT,PAYPAL
    TC-MW16-7B type bull eye dual color water level gauge

    Introduction:
    The TC-MW type bull eye dual color water level gauge is a direct reading instrument used to monitor the water level of subcritical and supercritical boilers and pressure vessels. It uses the principle of vapor red water green imaging to indicate the water level, and the light source uses light-emitting diodes (LEDs). This type of dual color water level gauge has a self flushing structure inside the body, which can prevent scaling in the observation hole, improve the display effect, and prolong the service life of the window. This type of water level gauge has a steam tracing function, which uses saturated steam inside the steam drum to heat the water level gauge, reducing the water level difference caused by the temperature difference between the steam drum and the water level gauge, making its water level measurement more accurate. The TC-MW type bull eye dual color water level gauge has explosion-proof function and is suitable for explosion-proof applications in the petrochemical industry and other industries.
    The window sealing structure of TC-MW type bull eye dual color water level gauge is divided into winding type and disc spring type. The disc spring sealing structure is specially designed for the frequent start and stop of cracking furnaces in the petrochemical industry. Its principle is to add a disc spring to the window component, which plays a buffering and automatic compensation sealing force role, enhances the sealing performance of the window component, and ensures the safe, reliable, and stable operation of the device.
    Technical parameters:
    Model: TC-MW16-7 IIIB
    Display format: Seven holes with blind spots
    Nominal pressure (MPa): 25
    Design pressure (MPa): 16
    Medium saturation temperature (): 345
    Installation center distance (mm): 670
    Visual range (mm): 454
    Sealing structure: winding type

  • Introduction:
    The TC-MW type bull eye dual color water level gauge is a direct reading instrument used to monitor the water level of subcritical and supercritical boilers and pressure vessels. It uses the principle of vapor red water green imaging to indicate the water level, and the light source uses light-emitting diodes (LEDs). This type of dual color water level gauge has a self flushing structure inside the body, which can prevent scaling in the observation hole, improve the display effect, and prolong the service life of the window. This type of water level gauge has a steam tracing function, which uses saturated steam inside the steam drum to heat the water level gauge, reducing the water level difference caused by the temperature difference between the steam drum and the water level gauge, making its water level measurement more accurate. The TC-MW type bull eye dual color water level gauge has explosion-proof function and is suitable for explosion-proof applications in the petrochemical industry and other industries.
    The window sealing structure of TC-MW type bull eye dual color water level gauge is divided into winding type and disc spring type. The disc spring sealing structure is specially designed for the frequent start and stop of cracking furnaces in the petrochemical industry. Its principle is to add a disc spring to the window component, which plays a buffering and automatic compensation sealing force role, enhances the sealing performance of the window component, and ensures the safe, reliable, and stable operation of the device.
